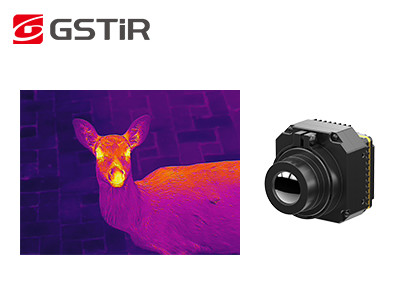

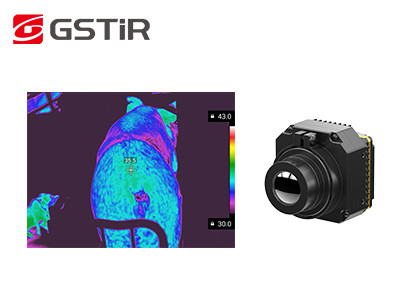

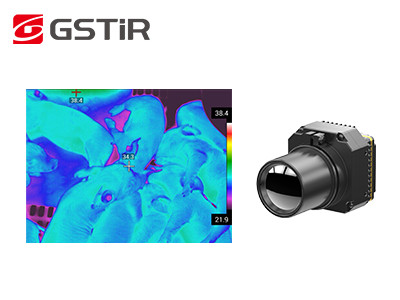

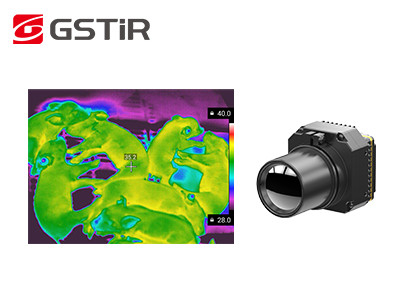

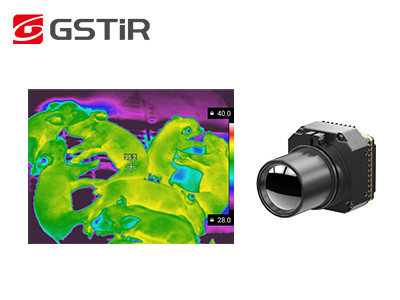

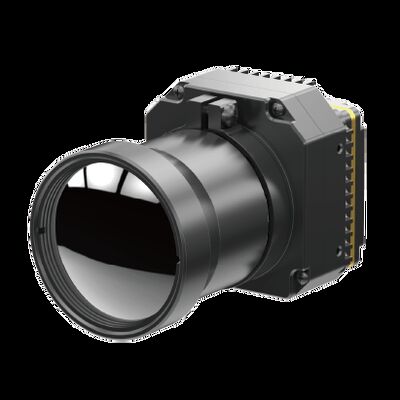

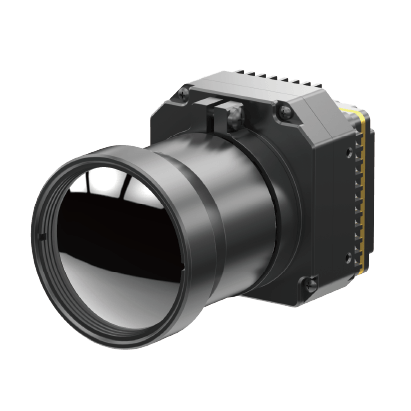

640x512 12um Thermal Imaging Module 8μm To 14μm NETD <40mK
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSensor | Uncooled Focal Plane Arrays | Frame Rate | 50Hz |
---|---|---|---|
Extension Components | VPC/ USB3.0/ GigE/ Cameralink | Working Voltage | 4V~6V |
Focus | Manual | Pixel Pitch | 12μm |
Resolution | 640×512 | Fixed Focus Athermal | 19mm/24mm |
Product Description:
Thermal Camera Core is a powerful and reliable imaging solution that can be used for professional thermal imaging applications. It is powered by an uncooled IR detector that can capture both visible and infrared light. The pixel pitch of this thermal camera core is 12μm and the spectral range is from 8μm to 14μm. With its 4V to 6V working voltage, this thermal imaging module offers a fixed focus athermal lens of 19mm/24mm for maximum accuracy and imaging quality. The core of this thermal imaging module is the uncooled Focal Plane Arrays (FPA) that can be used to capture the thermal images. Its advanced infrared technology ensures clear and sharp images with minimum noise. With its low power consumption and high-speed responsiveness, Thermal Camera Core can provide an accurate and reliable thermal imaging solution for a variety of applications.
Features:
- Product Name: Thermal Camera Core
- Typical NETD: <40mK
- Working Voltage: 4V~6V
- Pixel Pitch: 12μm
- Spectral Range: 8μm To 14μm
- Extension Components: VPC/ USB3.0/ GigE/ Cameralink
- Main Components: Microbolometer
- Application: Thermal Camera, Thermal Module
Technical Parameters:
Parameter | Value |
---|---|
Typical NETD | <40mK |
Size | 44.45mm×44.45mm×26mm |
Focus | Manual |
Extension Components | VPC/ USB3.0/ GigE/ Cameralink |
Pixel Pitch | 12μm |
Resolution | 640×512 |
Weight | 67g |
Working Voltage | 4V~6V |
Spectral Range | 8μm To 14μm |
Sensor | Uncooled Focal Plane Arrays |
Keywords | LWIR camera, infrared camera, infrared camera module, thermal camera |
Applications:
The GSTiR PLUG612 Thermal Camera Core is a powerful LWIR camera module designed for non-contact temperature measurement. It is a plug and play module that comes with a 44.45mm × 44.45mm × 26mm size and offers a maximum frame rate of 50Hz. It is equipped with an uncooled focal plane array microbolometer sensor and offers manual focus. The camera module also comes with extension components like VPC/ USB3.0/ GigE/ Cameralink, making it highly efficient and suitable for a wide variety of applications.
The GSTiR PLUG612 Thermal Camera Core is ideal for applications like security, military, firefighting, search and rescue, machine vision, thermal imaging for drones and robotics, temperature measurement and thermal imaging in medical, automotive and industrial applications. It is also suitable for applications that require non-contact temperature measurement and accurate thermal imaging, like building automation, quality control and inspection, energy efficiency, research and development, and predictive maintenance.
This powerful LWIR camera module can detect even the slightest changes in temperatures, making it one of the most reliable thermal imaging cameras available. With its plug and play design, it is easy to install and use. Moreover, its high resolution and wide range of features make it perfect for a wide range of applications. So, if you are looking for a non-contact thermal imaging camera that delivers excellent performance and reliability, the GSTiR PLUG612 Thermal Camera Core is the perfect choice for you.
Customization:
Brand Name: GSTiR
Model Number: PLUG612
Place of Origin: China
Minimum Order Quantity: 1
Working Voltage: 4V~6V
Spectral Range: 8μm To 14μm
Weight: 67g
Frame Rate: 50Hz
Pixel Pitch: 12μm
GSTiR specializes in infrared detectors, uncooled IR detectors and thermal camera cores.
Support and Services:
We are committed to providing comprehensive technical support and services for our Thermal Camera Core products. Our team of experienced professionals are available to help you with all aspects of product installation, setup, maintenance, and troubleshooting.
We provide detailed instructions on how to install and configure the Thermal Camera Core. Our team is also available to assist with any questions or concerns you may have.
Our team is available to help you with any maintenance or troubleshooting issues you may encounter. We provide detailed instructions on how to diagnose and resolve common problems.
We offer a warranty on all our Thermal Camera Core products. In the event of a malfunction or failure, we will replace the product as quickly as possible. We also provide technical assistance to ensure the replacement product is working properly.
