384x288 Resolution 17μm Pixel Pitch Uncooled Thermal Imaging Module LWIR Camera Core

  • 384x288 Resolution 17μm Pixel Pitch Uncooled Thermal Imaging Module LWIR Camera Core
Place of Origin China
Brand Name SensorMicro
Model Number COIN417G3
Minimum Order Quantity 1
Price Negotiable
Payment Terms T/T
Product Details
Sensor Uncooled Focal Plane Arrays Frame Rate 25/30/50Hz
Analog Video PAL/NTSC Pixel Pitch 17μm
Resolution 384×288 Lens Type Fixed Focus Athermal
Highlight

8μm Thermal Imaging Module

,

14μm Thermal Imaging Module

,

12um Thermal Imaging Module
Leave a Message
Product Description

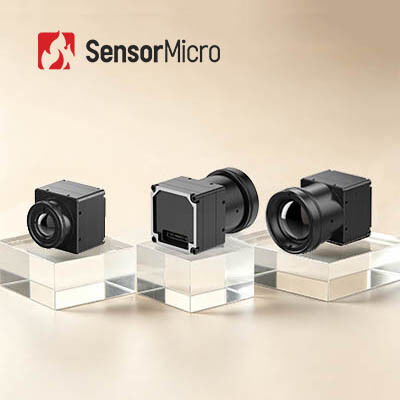

384x288 Resolution 17μm Pixel Pitch Uncooled Thermal Imaging Module LWIR Camera Core
Product Overview

COIN417G3 is a professional uncooled LWIR camera core powered by a high-precision focal plane array detector. Featuring 384*288 resolution, 17μm wafer-level packaging and an 8-14μm spectral band, it supports multiple fixed-focus athermal lenses in diverse focal lengths.

It features ultra-low power consumption and full compatibility with industry-standard interfaces, making it highly versatile for applications such as industrial vision, night-time surveillance, outdoor observation, and AIoT. This infrared camera core offers strong support for secondary development and system integration, accelerating the time-to-market of infrared imaging systems.

Key Features
Resolution
384*288
Typical NETD
≤30mK
Working Voltage
4.5V~5.5V
Pixel Pitch
17μm
Spectral Range
8μm To 14μm
Optical Lens
Fixed Focus Athermal
Sensitive Material
Vanadium oxide
ICC Software
Module Control & Video Display
Technical Parameters
Parameter Specification
IR Detectors Indicators
Sensitive Material VOx
Resolution 384*288
Pixel Size 17μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK/F1.0/25℃
Image Processing
Digital Frame Rate 25/30/50Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 50Pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0/USB2.0/VPC/USB2.0&VPC
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/DVP16/USB2.0/BT.656/LVDS
Supply Voltage 4.5~5.5V
Typical Power Consumption 0.65W
Mechanical
Bare Core Size(mm) 25.4mm*25.4mm*16.5mm
Bare Core Weight(g) 16.6±1
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration Random Vibration, 5.35grms, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm
Protection Level IP67(Front Lens)
Production Capability
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Your Trusted Partner in Infrared Sensing
Deep Technical Expertise

With many years of experience in the research, development, and application of infrared sensor technology, we have built strong capabilities across chip design, wafer fabrication, packaging and testing, as well as system integration. Our solid foundation enables us to continuously deliver innovative and reliable products that meet evolving market demands.

Focused on Innovation and Practical Implementation

We are committed to driving technological breakthroughs in thermal imaging, constantly pushing the boundaries in NETD, SWaP, and operating temperature. Our products consistently lead in applications across security, industrial monitoring, intelligent systems, and more.

Diversified Product Portfolio

Backed by independent R&D and multiple technical pathways, we offer a comprehensive range of infrared detection components—both cooled and uncooled—providing tailored solutions for a wide variety of industries.

Rigorous Reliability Validation

Supported by a robust quality management system, our products undergo multiple testing procedures throughout production to ensure long-term stability and reliability.

Professional Technical Support and Joint Development

Our engineering team works closely with customers' R&D and product teams to accelerate system integration, improve efficiency, and shorten time-to-market. Your success is our shared mission.

Support and Services

We are committed to providing comprehensive technical support and services for our thermal camera core products. Our team of experienced professionals are available to help you with all aspects of product installation, setup, maintenance, and troubleshooting.

Installation and Setup

We provide detailed instructions on how to install and configure the thermal camera core. Our team is also available to assist with any questions or concerns you may have.

Maintenance and Troubleshooting

Our team is available to help you with any maintenance or troubleshooting issues you may encounter. We provide detailed instructions on how to diagnose and resolve common problems.

Warranty and Replacement

We offer a warranty on all our thermal camera core products. In the event of a malfunction or failure, we will replace the product as quickly as possible. We also provide technical assistance to ensure the replacement product is working properly.
