LWIR Uncooled Thermal Imaging Module 640x512/12µm with High Thermal Sensitivity
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN612RG2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Power Consumption | 0.65W |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 12μm |
| NETD | ≤25mK/F1.0/25℃ | Frame Rate | 25Hz/30Hz |
| Highlight | High Thermal Sensitivity Camera Module,640x512 LWIR Uncooled Thermal Module,Thermal Imaging Module 12um |
||
Product Description

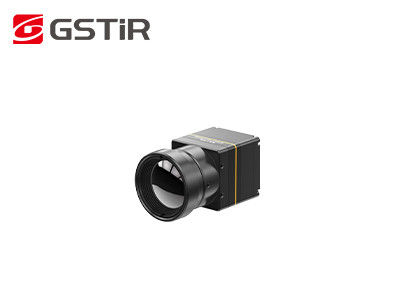

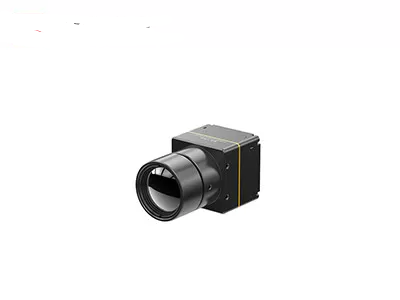

LWIR Uncooled Thermal Imaging Module 640x512/12µm with High Thermal Sensitivity
Product Overview
The COIN612RG2 high-precision infrared temperature measurement camera core utilizes the advanced ApexCore 640*512/12μm infrared detector, featuring ultra-compact dimensions and ultra-low power consumption. Equipped with professional signal processing technology and mature temperature measurement algorithms, it delivers real-time, stable, and accurate temperature monitoring with measurement accuracy of ±2°C or ±2%. Supporting mainstream serial communication protocols, diverse video output interfaces including USB2.0, DVP, LVDS and BT.656, and a comprehensive range of customizable optical lenses, this module significantly reduces the barrier to secondary development.
Key Features
- Comprehensive Functionality, Cost-Effective Design: Developed using ApexCore wafer-level infrared detector with NETD≤25mK; combines widely used FPA with advanced image processing algorithms for enhanced image quality; temperature measurement accuracy up to ±2°C or ±2%, supporting ranges of -20°C to 150°C and 100℃ to 550°C, with customizable extensions
- Compact and Lightweight, High Efficiency with Low Power: Dimensions: 25.4*25.4*15.7mm; Weight: 15±1g; Power consumption: ≤0.65W
- Multiple Configurations, Rapid Integration: Optional optical lenses to meet diverse application requirements; supports USB2.0/DVP/LVDS/BT.656 image output interfaces; RAW/YUV/TMP image data output with serial port control
Technical Specifications
| Model | COIN612RG2 |
|---|---|
| IR Detectors Indicators |
Sensitive Material: VOx Resolution: 640*512 Pixel Size: 12μm Spectral Response: 8μm ~ 14μm Typical NETD: ≤25mK/F1.0/25℃ |
| Image Processing |
Digital Frame Rate: 25/30Hz Start-up Time: 6s Analog Video: PAL/NTSC Digital Video: RAW/YUV422/TMP Image Algorithm: Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE) Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| Electrical |
Standard External Interface: 50pin: DF40C-50DP-0.4V(51), (HRS,Male) USB Expansion Board: USB3.0/USB2.0/VPC/USB2.0&VPC Communication Interface: TTL-232/USB2.0 Digital Video Interface: DVP8/DVP16/USB2.0/BT.656/LVDS Supply Voltage: 4.5~5.5V Typical Power Consumption: 0.65W |
| Temperature Measurement |
Operating Temperature: -10℃~+50℃ Temperature Measurement Range: -20℃~150℃, 100℃~550℃; Support Customization and Expansion Temperature Measurement Accuracy: ±2°C or ±2% (whichever is greater) Partial Temperature Measurement: Support output maximum, minimum and average value of temperature measurement areas SDK: Android/Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Mechanical |
Bare Core Size: 25.4*25.4*15.7mm Bare Core Weight: 15±1g |
| Environmental Adaptability |
Operating Temperature: -40℃~+70℃ Storage Temperature: -45℃~+85℃ Humidity: 5%~95%, non-condensing Vibration: 5.35grms, Random Vibration, 3-axis Impact: Half Sine Wave, 40g/11ms, Impact Direction 3 Axis, 6 Direction Certification: ROHS2.0/REACH |
| Optical Lens |
Optical Lens: Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25m/35mm Protection Level: IP67(Front Lens) |
Industrial Applications
The thermal imaging module is applied in Thermography, Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and related fields.
Customized Services
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. Can infrared be used for energy-saving purposes?
Yes, infrared technology can be used for energy-saving purposes. Infrared sensors can detect human presence or movement in a room, allowing for automatic control of lighting, heating, and cooling systems. This helps minimize energy consumption by operating only when needed.
2. How does thermal imaging work?
Thermal imaging works by using a special camera that detects infrared radiation. The camera measures the intensity of radiation emitted by objects and assigns different colors or grayscale values to represent different temperatures. These temperature variations are then displayed as an image for observation and analysis.
3. What are the applications of thermal imaging?
Thermal imaging has various applications across different industries. It is commonly used in electrical inspections, building and home inspections, surveillance and security, firefighting, medical diagnostics, industrial inspections, and wildlife observation.
