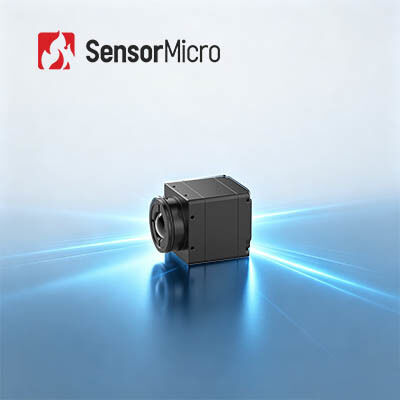

Uncooled LWIR Thermal Camera Core with 384x288 Resolution and 12μm Pixel Pitch for Shutterless Security Monitoring

  • Uncooled LWIR Thermal Camera Core with 384x288 Resolution and 12μm Pixel Pitch for Shutterless Security Monitoring
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE412
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Spectral Range 8~14μm Resolution 384x288
Power Consumption 0.8W Pixel Pitch 12μm
NETD ≤30mK Frame Rate 50Hz
Highlight

RS232 Thermal Camera Core

,

Outdoor LWIR Thermal Camera Core

,

640x512 Lwir Camera Core
Leave a Message
Product Description
Uncooled LWIR Thermal Camera Core 384x288/12μm for Security Monitoring
Product Overview

The iSE412 infrared camera core is a high-reliability miniaturized thermal imaging solution based on self-developed 384×288/12μm ceramic packaging detection technology. It provides stable, high-quality thermal imaging output for various intelligent system integration projects. The proprietary shutterless imaging technology ensures 24-hour continuous monitoring without interruptions or noise interference from shutter calibration.

Main Features
  • Shutterless Design for Smoother Viewing: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Silent operation ensures discreet use without mechanical noise.
  • Compact and Lightweight, Flexible for Integration: Total system dimensions as small as 25.4×25.4×22.7 mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration.
  • Feature-Rich, Seamless Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization.
Product Specifications
Model iSE412
IR Detectors Indicators
Sensitive Material VOx
Resolution 384×288
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 384×288
Digital Frame Rate 50Hz
Start-up Time 6s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Electrical
Standard External Interface
50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE
Extension Components USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 0.8W@50Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 25.4×25.4×22.7 φ36×24.3
Bare Core Weight(g) 26±1.5 28±1.5
Optical Lens
Fixed Focus Athermal: 4.9/9.1/13/19mm
Fixed Focus Athermal: 25mm/35mm
Shutter Components Optional
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 1500g@0.4ms
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Certification ROHS2.0/REACH
Industrial Applications

The iSE412/R thermal imaging module is applied in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.

Our Advantages
  • High sensitivity and excellent performance with world-leading technology in infrared industry
  • Various infrared detectors available including both uncooled and cooled IR detectors in different formats and pixel sizes
  • Volume production to ensure fast delivery with three production lines and annual production capability up to millions of detectors
Frequently Asked Questions
What is infrared isotherm?

Isotherms play an important role in the use of infrared cameras and in the analysis of infrared thermograms. Observers can intuitively observe the distribution of a certain temperature range in the infrared thermal image.

The line connecting the points with the same temperature value on the isotherm graph is called isotherm. The isotherms show different states, and the temperature represented is also different, which are divided into the following situations:

  • If the isotherm is sparse, the temperature difference between different places is relatively small; if the isotherm is dense, it means that the temperature in different places is very different.
  • If the isotherm is straight, it means that there are few factors affecting the temperature distribution; if the isotherm is curved, it means that there are many factors affecting the temperature distribution.
  • The east-west trend means that the temperature varies with latitude, and the latitude factor is the main factor; if the isotherm is parallel to the coastline, which means that the temperature varies with the distance from the sea, and the distance from the sea is the main factor.
