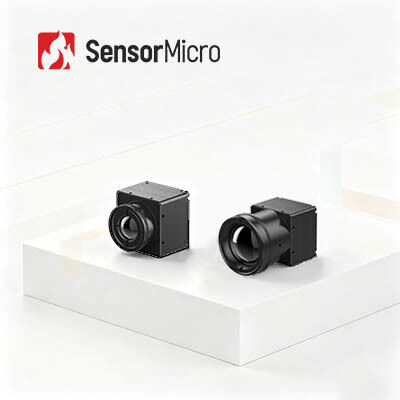

LWIR Thermal Imaging Module with 384x288 Resolution and 17μm Pixel Pitch for ≤30mK NETD Performance
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN417G3 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 384x288 | Power Consumption | 0.65W |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 17μm |
| NETD | ≤30mK/F1.0/25℃ | Frame Rate | 25/30/50Hz |
| Highlight | 12uM Detectors LWIR Camera Core,Medical Inspection LWIR Camera Core,640x512 Ir Detectors Thermal Module |
||
Product Description
LWIR Thermal Imaging Module With 384x288 17μm Infrared Detector
Product Overview
The COIN417G3 achieves an optimal balance between imaging performance and procurement cost. Featuring exceptional thermal sensitivity with NETD≤30mK, ultra-low power consumption, and universal interface compatibility, it eliminates additional adaptation costs for cross-scenario deployment. Multiple interchangeable optical lenses support outdoor all-weather observation, emergency firefighting rescue, and industrial defect detection, enabling developers to significantly shorten thermal vision product time-to-market.
Main Features
Comprehensive Functionality, Cost-Effective Design
- Developed using high cost-performance wafer-level packaging detector
- Integrated with advanced image processing algorithms to enhance image quality
Outstanding Performance, Superior Imaging
- High sensitivity with typical NETD≤30mK
- Next-generation image algorithms deliver clearer, sharper thermal images
Flexible Extension, Rapid Integration
- Multiple optical lens options available to suit diverse application scenarios
- Supports USB2.0/DVP/LVDS/BT.656 image output interfaces
- Outputs RAW/YUV image data with serial port control
Product Specifications
| Model | COIN417G3 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | ICC Software - Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50Pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Mechanical | |
| Bare Core Size(mm) | 25.4mm×25.4mm×16.5mm |
| Bare Core Weight(g) | 16.6±1 |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN417G3 thermal imaging module is applied in Industrial Vision, Security Monitoring, Firefighting & Rescue, Outdoors, Machine Vision, ADAS, and related fields.
Our Advantages
As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.
Frequently Asked Questions
Wide Applications of Infrared Thermal Imaging Module
Infrared thermal modules are widely used in industrial temperature measurement, medical inspection, construction, and other fields.
Industrial Applications: Thermal imaging modules can be used for fault detection and temperature monitoring of mechanical equipment, improving production efficiency and reducing production costs.
Medical Applications: Infrared camera modules can be used to diagnose breast cancer, measure body surface temperature, and other medical applications, improving healthcare standards and providing more diagnostic information for medical professionals.
Construction Applications: Infrared thermal imaging modules can detect energy loss in buildings, improving energy utilization efficiency and reducing energy consumption.
Additional application scenarios include security monitoring, UAV payloads, personal night vision, thermography, and many other fields.
