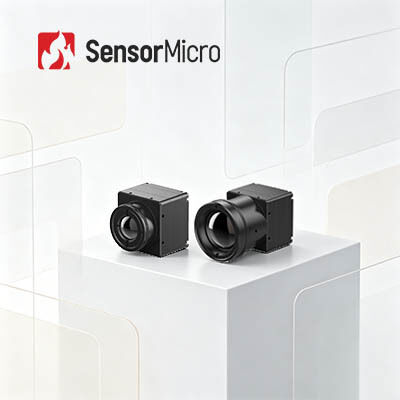

Multifunctional LWIR Thermal Imaging Module with 384x288 17μm IR Detector
Product Overview

COIN417G3 is a cost-effective 384×288/17μm wafer-level infrared camera core with NETD≤30mK. It supports USB2.0/DVP/LVDS/BT.656 multi-interface output and customizable lens matching. Designed for low-power embedded integration, it serves industrial vision, security, firefighting and ADAS vision systems with easy secondary development.

Empowered by exclusive processing imaging algorithms, COIN417G3 infrared camera core produces sharper thermal contours with lower noise under subtle temperature differences. With comprehensive interface compatibility and flexible lens expansion capability, it can be used in many fields.

Main Features
  • Comprehensive Functionality, Cost-Effective Design
    • Developed using a high cost-performance wafer-level packaging detector
    • Integrated with advanced image processing algorithms to enhance image quality
  • Outstanding Performance, Superior Imaging
    • High sensitivity with a typical NETD≤30mK
    • Next-generation image algorithms deliver clearer, sharper thermal images
  • Flexible Extension, Rapid Integration
    • Multiple optical lens options available to suit diverse application scenarios
    • Supports USB2.0/DVP/LVDS/BT.656 image output interfaces
    • Outputs RAW/YUV image data with serial port control
Product Specifications
Model COIN417G3
IR Detectors Indicators
Sensitive Material VOx
Resolution 384×288
Pixel Size 17μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK/F1.0/25℃
Image Processing
Digital Frame Rate 25/30/50Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 50Pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0/USB2.0/VPC/USB2.0&VPC
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/DVP16/USB2.0/BT.656/LVDS
Supply Voltage 4.5~5.5V
Typical Power Consumption 0.65W
Mechanical
Bare Core Size(mm) 25.4mm×25.4mm×16.5mm
Bare Core Weight(g) 16.6±1
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration Random Vibration, 5.35grms, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm
Protection Level IP67(Front Lens)
Industrial Applications

The COIN417G3 thermal imaging module is applied in the field of Industrial Vision, Security Monitoring, Firefighting & rescue, Outdoors, Machine Vision, ADAS etc.
