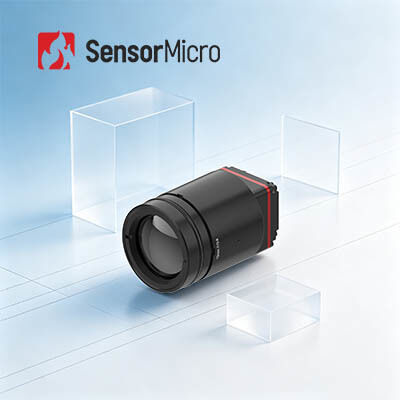

LWIR Uncooled 1280x1024 Resolution Thermal Imaging Module with 8μm Pixel Pitch and ≤30mK NETD

  • LWIR Uncooled 1280x1024 Resolution Thermal Imaging Module with 8μm Pixel Pitch and ≤30mK NETD
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024 Power Consumption 1W
Spectral Range 8~14μm Pixel Pitch 8μm
NETD ≤30mK Frame Rate 25Hz/30Hz
Highlight

25mm Lens Thermal Imaging Module

,

Outdoor Thermal Imaging Module 640x512

,

LWIR Uncooled Thermal Core
Leave a Message
Product Description
LWIR Uncooled 1280x1024/8μm Thermal Imaging Module
Product Overview
The iTL1208 is an 8μm megapixel uncooled infrared camera core designed for modern miniaturized optoelectronic terminal equipment. With industry-leading SWaP (Size, Weight, and Power) indicators, it weighs only 35.7 grams and measures 22.6×22.6×34.5 millimeters with a matched 12mm lens. The module delivers class-leading high-definition thermal imaging at 1280×1024 resolution with 30mK ultra-low thermal sensitivity. Equipped with rich standard peripheral interfaces and optional customized lenses, it supports fast system integration and simple parameter configuration. Widely applied in public safety, industrial detection, and portable mobile terminal fields, it provides stable and reliable core infrared imaging support for terminal equipment iteration and upgrading.
Main Features
  • Extreme Lightweight Design - Compact size of 22.6×22.6×34.5mm and weight of 35.7g (including 12mm lens); among the highest levels of integration in its class
  • High Sensitivity, Precise Detection - 8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images; typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration - Multiple optical lens options available to meet diverse application requirements; supports MIPI CSI image output interface; RAW and YUV image data output with control via serial port/I2C
Product Specifications
Model iTL1208
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 8μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30Hz
Start-up Time: ≤6s
Digital Video: RAW/YUV
Image Algorithm: NUC/3DNR/DNS/DRC/EE
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software PC Software: Module Control & Video Display
Electrical Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface: TTL-232/I2C
Digital Video Interface: MIPI-CSI
Supply Voltage: 4.5-5.5V
Typical Power Consumption: 1W
Mechanical Size (including lens): Various configurations with 5mm, 10mm, 12mm, 17mm, 25mm, and 35mm lenses
Weight (including lens): Ranges from 35.7±2g (12mm lens) to 110±5.5g (35mm lens)
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification: ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications
Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue
About SensorMicro
SensorMicro is the world's leading infrared detector manufacturer and service provider. We provide customers worldwide with high-performance uncooled and cooled thermal imaging detectors and share our professional application experience. We deliver advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
Frequently Asked Questions
What is an Infrared Camera?
Infrared thermal imaging systems use infrared detectors to sense infrared radiation and convert it to electrical signals, which are then amplified and processed into displayed images.
Basic Principle of Infrared Camera
Thermal imaging technology is a passive, non-contact detection and recognition technology with two main functions:
  • Thermography: non-contact temperature measurement and fault detection
  • Night Vision: easily detect and identify targets in total darkness
