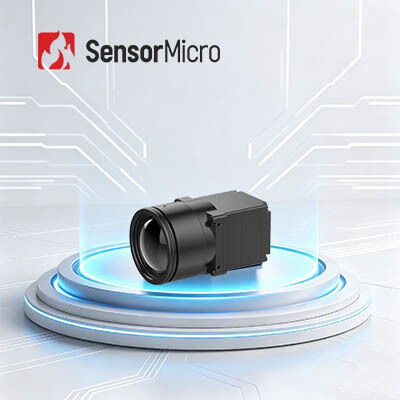

1280x1024 12μm Uncooled Thermal Imaging Module for Key Infrastructure Monitoring
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN1212 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | Power Consumption | 1.0W |
|---|---|---|---|
| Digital Video Interface | DVP16/BT.1120/MIPI | Spectral Range | 8~14μm |
| Pixel Pitch | 12μm | Frame Rate | 30Hz |
| Highlight | 12um Uncooled Thermal Imaging Module,Wildlife Observation Thermal Module 640x512,30Hz Thermal Imaging Module |
||
Product Description
1280x1024 12μm Uncooled Thermal Imaging Module for Key Infrastructure Monitoring
Product Overview
COIN1212 is a high-resolution wafer-level infrared camera core equipped with 1280×1024 12μm detector and advanced imaging processing systems. It supports diverse video outputs and serial communication, delivers fast hotspot detection and high-definition thermal imagery, and greatly simplifies system integration. Suitable for infrastructure monitoring, intelligent transportation, advanced manufacturing and scientific research, it is a compact and high-performance thermal imaging core for diverse high-end applications.
Main Features
High-Definition Imaging, Precise Detection
- 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
- Captures fine target details clearly during close-range observation
Full-Featured and Cost-Effective
- Built with an industry-leading large-format wafer-level infrared detector
- Integrated with advanced image processing algorithms to enhance image clarity and visual quality
Rapid Integration, Accelerated Development
- Supports multiple image output interfaces including DVP and BT.1120
- Outputs RAW/YUV image data with serial port control
Product Specifications
| Model | COIN1212 |
|---|---|
| IR Detectors Indicators |
Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 12μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤40mK/F1.0/25℃
|
| Image Processing |
Digital Frame Rate: 30Hz
Start-up Time: 6s
Analog Video: /
Digital Video: RAW/YUV422
Image Algorithm: Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Suppression (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE)
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
|
| PC Software | ICC Software: Module Control & Video Display |
| Electrical |
Standard External Interface: 50pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board: USB3.0
Communication Interface: TTL-232
Digital Video Interface: DVP16/BT.1120/MIPI
Supply Voltage: 4.5~5.5V
Typical Power Consumption: 1.0W
|
| Mechanical |
Bare Core Size(mm): 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm; 35mm/50mm/100m: 35.4mm×35.4mm×17.8mm
Bare Core Weight(g): 14mm/19mm/25mm: 19.7±1g; 35mm/50mm/100m: 32.5±1g
|
| Environmental Adaptability |
Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification: ROHS2.0/REACH
|
| Optical Lens |
Optical Lens: Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm
Protection Level: IP67(Front Lens)
|
Industrial Applications
The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research etc.
About SensorMicro
Driven by user needs, SensorMicro is committed to the in-depth development and continuous improvement of infrared products and application solutions. We not only provide high-quality hardware products but also share professional application experience, offering customized solutions tailored to the unique requirements of different industries. Our global service network ensures timely technical support and after-sales service, making us a trusted partner for customers around the world.
Frequently Asked Questions
What is the focal length?
We all know that the imaging principle of camera is pinhole imaging, so in a digital camera, the focal length refers to the distance from the lens pinhole to the sensor, and the unit is mm (millimeter).
Definition of Different Lens Types
When it comes to camera lenses, some people may know that there are fixed-focus lenses and zoom lenses. A fixed focal length lens means that the focal length is fixed, while a zoom lens means that the focal length of the lens is variable.
Generally, the focal length will be marked on the camera lens, such as 50mm, 24-70mm, etc. If there is only one number on the lens, it means that it is a fixed-focus lens, such as a 50mm lens, which means that the lens can only be fixed at a focal length of 50mm. If there are two numbers marked on the lens, it means that it is a zoom lens, such as a 24-70mm lens, which means that the focal length of this lens can be adjusted freely between 24-70mm.
Generally, the focal length will be marked on the camera lens, such as 50mm, 24-70mm, etc. If there is only one number on the lens, it means that it is a fixed-focus lens, such as a 50mm lens, which means that the lens can only be fixed at a focal length of 50mm. If there are two numbers marked on the lens, it means that it is a zoom lens, such as a 24-70mm lens, which means that the focal length of this lens can be adjusted freely between 24-70mm.
