Uncooled LWIR 256x192 / 12μM Thermal Security Camera Module

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number iLC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 256x192 Weight 8.9g±0.5g (including 3.2mm Lens)
Spectral Range 8~14μm Pixel Pitch 12μm
NETD ≤65mK Frame Rate 25Hz/30Hz
High Light

12UM Thermal Security Camera Module


256x192 Thermal Security Camera Module


Uncooled Lwir Camera Module

Leave a Message
Product Description

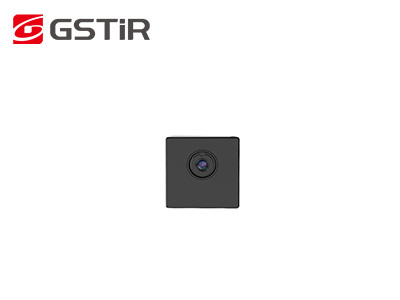

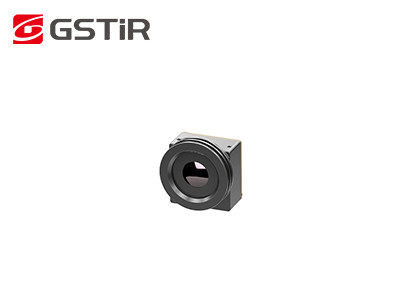

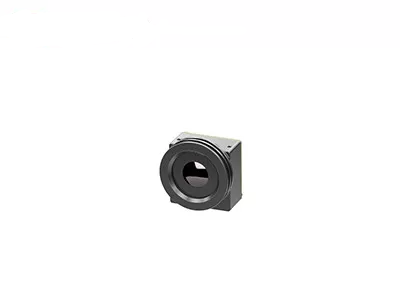

iLC212 Thermal Imaging Module


Uncooled LWIR 256x192 / 12μM Thermal Security Camera Module


Product Description


iLC212 uncooled IR imaging module, also known as the uncooled thermal module, is radiometric-capable and has available infrared non-contact temperature measurement function. It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that captures long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.


Due to its fully optimized SWaP-C, the iLC212 thermal camera module has low resolution, small size, low power consumption and very low price. Thus, in the field of security and monitoring, it is very suitable for the wide angle and close range temperature measurement and monitoring.


Main Features


- Fully Optimized SWaP-C applications

- Suitable for various infrared products

- A wide range of thermal imaging applications

- Low Power Consumption


Product Specifications


Model iLC212
IR Detector Performance
Material Uncooled Vanadium Oxide
Resolution 256×192
Pixel Size 12μm
Spectral Response 8μm ~14μm
NETD ≤65mK@F1.0@25℃@50Hz
Image Processing
Digital Video RAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line
Digital Frame Rate 25Hz/30Hz
Image Display Black-hot/white-hot/Pseudo-color
Image Algorithm Nonuniformity Correction (NUC)
3D Image Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
EE Enhancement
Start-up Time ≤3s
Temperature Measurement
Operating Temperature Range -10℃~+50℃
Temperature Measurement Range -20℃~+150℃, Support Temperature Measurement Range Expansion and Customization
Temperature Measurement Accuracy ±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m
Regional Temperature Measurement Support Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value
SDK Windows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion
Electrical interface
External interface 30pin_HRS Connector
Power Input
Digital Video
GPIO etc.
Communication RS232-TTL/USB2.0
Expansion Component VPC Board
PC Software
ICC Software Module Control and Video Display
Power System
Power Supply DC 3.3V±0.1V
Power Dissipation Steady State: 0.70W/3.3V @23±3℃
Physical Property
Connectors External Connector Model: DF40C-30DP-0.4V (51), (HRS-Male)
Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female)
Size 21mm×21mm×12.8mm (including 3.2mm lens)
Weight 8.9g±0.5g (including 3.2mm lens)
Environmental Adaptability
Operation Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Impact & Vibration Resistance Impact: half sine wave, 40g/11ms, 3-axis, 6-direction
Vibration: 5.35grms, 3 axis
Certification ROHS2.0/REACH
Optional Lens 3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR


Industrial Applications


The iLC212 thermal imaging module is applied to the field of security and monitoring, It is suitable to be integrated into the Hidden Camera, Digital Camera, Dome Camera, Box Camera etc.


Uncooled LWIR 256x192 / 12μM Thermal Security Camera Module 0

Our Advantages


Uncooled LWIR 256x192 / 12μM Thermal Security Camera Module 1





1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".

2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
