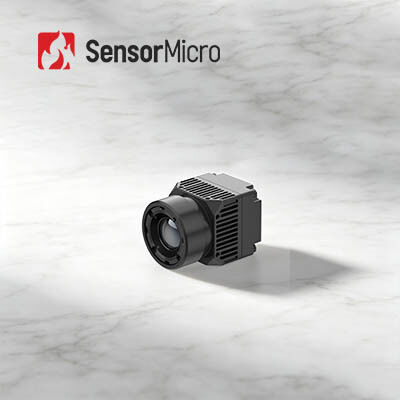

Fast Integration 640×512 Resolution Thermal Imaging Module with 8μm Pixel Pitch and ±0.5°C Accuracy for Health Care

  • Fast Integration 640×512 Resolution Thermal Imaging Module with 8μm Pixel Pitch and ±0.5°C Accuracy for Health Care
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iHA608W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640×512 Power Consumption 0.6W
Spectral Range 8~14μm Pixel Pitch 8μm
Typical NETD ≤30mK Frame Rate 25Hz
Highlight

Thermal Camera Module 17um

,

384x288 Thermal Camera Module

,

0.85W Thermal Imaging Camera Module
Leave a Message
Product Description
Fast Integration Thermal Imaging Camera Module 640*512/8μm for Health Care
Product Overview

The iHA608W thermal module is specifically engineered for non-contact body temperature measurement and medical diagnosis applications. This advanced module integrates the ApexCore 640*512/8μm infrared detector, 4mm lens, and a dedicated SDK optimized for medical temperature measurement.

With a temperature measurement range of 0.5m to 5m, the iHA608W delivers exceptional temperature measurement consistency and superior accuracy of ±0.5°C across various application scenarios.

Designed for rapid integration into medical thermal imaging devices, this thermal camera module is poised for widespread adoption in disease screening, traditional Chinese medicine physiotherapy, health check-ups, and rehabilitation applications.

Main Features
  • Precise Measurement, Detailed Thermal Imaging
    • Specifically designed for non-contact body temperature measurement with accuracy up to ±0.5°C
    • Medical-grade optical lens and dedicated medical image processing algorithms deliver superior image clarity
  • Compact Design, Lightweight Integration
    • Powered by 8μm ApexCore infrared detector with small pixel pitch for compact form factor
    • Dimensions: 21*21*31.5mm with weight as low as 25±2g, ideal for integration into compact devices
  • Fast Integration, Easy Development
    • Standardized Type-C + USB 2.0 interfaces for streamlined system integration
    • Comprehensive Windows, Android, and Linux SDKs to lower development barriers
Product Specifications
Model iHA608W
IR Detectors Indicators
Sensitive Material VOx
Resolution 640*512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display Medical/Pseudo Color
PC Software
Computer Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃~+50℃
Temperature Measurement Range 32℃~+42℃
Temperature Measurement Accuracy ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C)
Measurement Distance 0.5m-5m; supports multi-distance temperature measurement via SDK
SDK Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration
Electrical
Standard External Interface USB(TYPE-C)
Communication Interface USB
Digital Video Interface USB2.0
Supply Voltage 5V±0.5
Typical Power Consumption 0.6W
Optical Lens
Focus Length 4mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV(H*V) 69.2°*55.4°
Mechanical
Size (including lens) 21mm*21mm*31.5mm (including 4mm lens)
Weight (including lens) 25g±2 (including 4mm lens)
Environmental Adaptability
Operating Temperature -10℃~+50℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS2.0/REACH
Industrial Applications

The iHA608W thermal module is expected to be widely used in medical diagnosis, disease screening, animal agriculture, home medical care, and related healthcare applications.

Our Advantages
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available - both uncooled and cooled IR detectors in different formats and pixel sizes
  • Volume production to ensure fast delivery - three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
What is infrared radiation?
When discussing infrared thermal imaging, the fundamental concept is infrared radiation (IR). Infrared radiation energy spans wavelengths from approximately 700nm to about 1mm. All objects emit heat in the form of infrared radiation, which remains invisible to the human eye since our vision is limited to the "visible light" portion of the electromagnetic spectrum.
How does an infrared thermal imager work?
The core component of infrared equipment is the infrared thermal detector, which can sensitively detect minute temperature differences in surrounding objects. The detector collects radiation information from objects and processes this data to output temperature information for imaging based on temperature differentials. The intensity of infrared radiation increases with object temperature - hotter objects produce more infrared radiation, which can be perceived as heat when intensity levels are sufficiently high.
