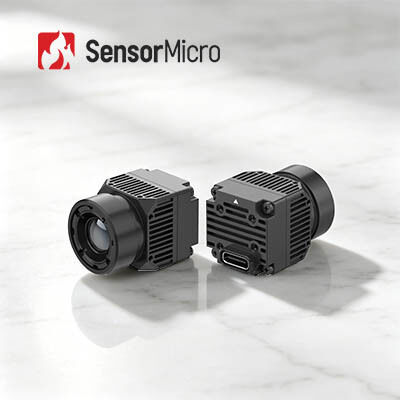

400x300 Resolution 17μm Pixel Size LWIR Thermal Camera Module for Medical Diagnosis

The iHA608W is a high-practical uncooled infrared camera core that balances high performance and low cost. It is equipped with 640*512 high-resolution 8μm infrared detector and professional medical temperature measurement algorithms, achieving ±0.5°C accurate non-contact temperature measurement and high-quality thermal imaging output.

The 8μm pixel size enables a more compact and lightweight design, while Type-C video and USB 2.0 communication interfaces simplify system integration. The iHA608W is well suited for applications including medical diagnostics, health screening, and livestock temperature measurement.

• Designed specifically for non-contact body temperature measurement, with accuracy of up to ±0.5°C
• Medical-grade optical lens and dedicated medical image processing algorithms deliver clear images

• Powered by an 8μm ApexCore infrared detector with small pixel pitch for compact form factor
• Dimensions as small as 21*21*31.5mm and weight as low as 25±2g, ideal for integration into compact devices

• Standardized Type-C + USB 2.0 interfaces for streamlined system integration
• Provides Windows, Android, and Linux SDKs to lower development barriers

The iHA608W thermal camera core is widely used in human body temperature measurement and elevated body temperature screening.

SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.

SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
