Tiny Size Uncooled Infrared Thermal Imaging Core 640x512 12um For UAV Payloads
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spectral Range||8~14μm||Pixel Pitch||12μm|
|Typical NETD||≤40mK||Frame Rate||30Hz|
Uncooled Infrared Thermal Imaging Core,
640x512 Infrared Thermal Imaging Core,
UAV Payloads Thermal Imaging Core

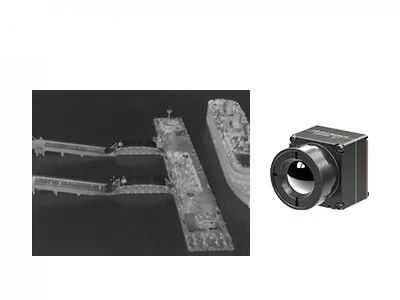

Tiny Size Uncooled Infrared Camera Core 640x512 12um for UAV Payloads
As a leading manufacturer of cooled uncooled infrared detectors & thermal modules, Global Technology developes a tiny size and lightweight infrared thermal imaging core iTL612R Pro, which is the compact version of infrared camera core iTL612R.
Fully oriented for SWaP-C (size-weight-and- power-cost), the size and weight of iTL612R Pro infrared camera core has already been at the forefront in the industry.It is the best choice for customers who have restrict requirements on size and weight when integrating their own drones.
Providing 640×512/12μm self-developed wafer-level infrared detector, lens protection grade IP67, imaging and temperature measurement version, and various SDK solutions, the iTL612R Pro thermal module responds to space constraints with smaller size and lighter weight, achieves longer battery life with lower power consumption, overcomes integration problems in the consumer electronics field, and provides more solutions for compact and portable products.
It is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Disaster Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Compact & Lightweight Design
• Size: 17mm×17mm×22mm (with 9.1mm lens)
• Weight: 13g (with 9.1mm lens)
• Power consumption as low as 0.7W
Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control
|IR Detector Performance|
|Sensitive Material||Vanadium Oxide|
|Image Algorithm||Non-uniformity Correction (NUC)|
3D Noise Reduction (3DNR)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
|Image Display||Black Hot/White Hot/Pseudo Color|
|ICC Software||Module Control & Video Display|
|Standard External Interface||30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)|
|USB Expansion Board||Type-C|
|Digital Video Interface||CMOS8/USB2.0|
|Supply Voltage||4.0-5.0V V VDC|
|Typical Power Consumption||0.7W|
|Operating Temperature Range||-10°C~+50°C|
|Temperature Measurement Range||-20°C~+150°C, 0°C~550°C; Support Customization and Expansion|
|Temperature Measurement Accuracy||Greater of ±2°C or ±2% (@23℃±3℃)|
|Regional Temperature Measurement||Support Maximum, Minimum and Average Value of the Output Regional Temperature|
|SDK||Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature|
|Size (mm)||17×17×22 (With 9.1mm Lens)|
|Weight||13g (With 9.1mm Lens)|
|Vibration||5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 9.1mm|
The iTL612R Pro thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
1. What is the difference between uncooled and cooled IR detectors?
There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.
Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.
Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
2. What is the Advantages of Medical Thermal Imaging?
Medical testing is the first step in medical diagnosis, and many of the current tests to assess organ health are invasive and uncomfortable. While thermal imaging combined with medical examination can solve this problem very well.
By using thermal imaging technology, doctors can carry out 100% safe, no radiation, non-invasive, non-contact full body checkup to avoid further, unnecessary testing procedures. The heat distribution in various parts of human body can be quickly shown to early detect and diagnose physical abnormalities, so that any further treatment can be easier and more effective.
