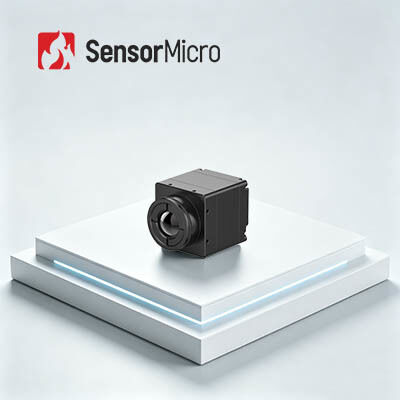

384x288 Resolution 12μm Pixel Pitch LWIR Thermal Camera Module with 50Hz Frame Rate for Observation
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE412 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 384x288 / 12μm | Digital Frame Rate | 50Hz |
|---|---|---|---|
| NETD | ＜30mK | Spectral Range | 8~14μm |
| Digital Video | YUV420/YUV422/RGB888/RAW | Image Algorithm | NUC/DRC/DNS/DDE/SFFC |
| Highlight | 30mK Uncooled Thermal Camera Module,25Hz LWIR Thermal Camera Module |
||
Product Description
384x288 / 12μm LWIR Thermal Camera Module Uncooled for Observation
Product Overview
The iSE412 thermal camera core utilizes a 384x288 / 12μm uncooled LWIR infrared detector, delivering exceptional infrared imaging performance adaptable to various observation scenarios. This infrared thermal module captures surrounding thermal distribution and presents vivid thermal imaging graphics, making it an ideal solution for real-time thermal scene monitoring and observation applications.
The module supports easy secondary development and system modification, capable of adapting to multiple application fields including industrial vision, firefighting and rescue, security surveillance, and outdoor observation. It is particularly beneficial for OEM customers requiring secondary development and integration in various thermal imagers and infrared cameras.
Main Features
- Shutterless Design for Smoother Viewing: No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Silent operation ensures discreet use without mechanical noise.
- Compact and Lightweight, Flexible for Integration: Total system dimensions as small as 25.4×25.4×22.7 mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration.
- Feature-Rich, Seamless Integration: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization.
Product Specifications
| Model | iSE412 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 384×288 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Effective Pixels | 384×288 | |
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Image Brightness | Auto/Manual | |
| Image Contrast | Auto/Manual | |
| Compensation Mode | Manual | |
| Electrical | ||
|
Standard External Interface
|
50pin: BP040SB-50-0114-B-R0
|
|
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 25.4×25.4×22.7 | φ36×24.3 |
| Bare Core Weight(g) | 26±1.5 | 28±1.5 |
| Optical Lens |
Fixed Focus Athermal: 4.9/9.1/13/19mm
|
Fixed Focus Athermal: 25mm/35mm
|
| Shutter Components | Optional | |
| Vibration | 5.35g, Random Vibration, 3-axis | |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Protection Level | IP67(Front Lens) | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE412 thermal camera core is widely used in industrial vision, firefighting and rescue, security surveillance, outdoor observation, machine vision, consumer electronics, and related fields.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references for getting started without guesswork.
- Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification made easy.
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
- Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues.
- Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
1. Advantages of Optical Gas Imaging
- Time-saving & efficient: Supports large-scale real-time detection, rapid leak location, no need for interrupting production.
- Long range detection: Operates away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source.
- Easy to analyze: Intuitive imaging, instant storage, convenient analysis.
- Multi-function inspection: A variety of gases can be detected, with excellent remote temperature measurement function.
