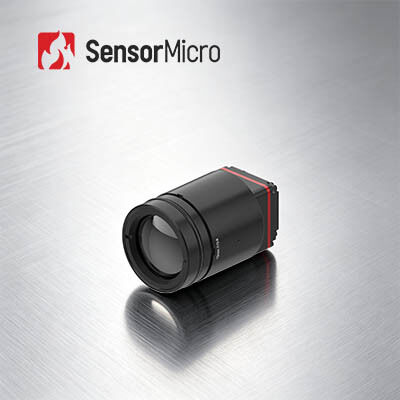

1280×1024 Resolution 8μm Pixel Size 30mK NETD Uncooled Thermal Imaging Camera Module High Definition

  • 1280×1024 Resolution 8μm Pixel Size 30mK NETD Uncooled Thermal Imaging Camera Module High Definition
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024 / 8μm Camera Lens Multiple Available
Image Algorithm NUC/3DNR/DNS/DRC/EE NETD ≤30mK
Spectral Range 8~14μm LW Digital Video Interface MIPI-CSI
Highlight

Infrared Camera Module 640x512

,

UAV Payloads Infrared Camera Module
Leave a Message
Product Description
1280×1024 / 8μm Uncooled Thermal Imaging Camera Module High Definition
Product Overview

We are pleased to recommend our iTL1208 thermal imaging module, the iTL1208 8μm megapixel infrared camera core, specially designed for global buyers focusing on low SWaP and high-cost-performance thermal components. This compact module features 22.6×22.6×34.5mm overall size and 35.7g net weight with a standard 12mm lens, making it highly adaptable for overseas mainstream handheld and mobile end products.

It delivers outstanding thermal sensitivity with 30mK NETD and sharp 1280×1024 HD thermal images aided by built-in image tuning algorithms. All standard industrial interfaces are reserved: MIPI CSI, dual RAW/YUV data output, and serial/I2C control channels. We support sample testing, small-batch trial orders and full cross-border technical guidance for your local product assembly and market launch.

Main Features
  • Extreme Lightweight Design
    Compact size of 22.6×22.6×34.5mm and a weight of 35.7g (including a 12mm lens)
    Among the highest levels of integration in its class
  • High Sensitivity, Precise Detection
    8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images
    Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration
    Multiple optical lens options available to meet diverse application requirements
    Supports MIPI CSI image output interface
    RAW and YUV image data output, with control via serial port/I2C
Product Specifications
Model iTL1208
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 8μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30Hz
Start-up Time: ≤6s
Digital Video: RAW/YUV
Image Algorithm: NUC/3DNR/DNS/DRC/EE
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software Module Control & Video Display
Electrical Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface: TTL-232/I2C
Digital Video Interface: MIPI-CSI
Supply Voltage: 4.5-5.5V
Typical Power Consumption: 1W
Mechanical Size (including lens):
• With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm)
• With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm)
• With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm)
• With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm)
• With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm)
• With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm)

Weight (including lens):
• 85.5±4.5g (With 5mm Lens)
• 70.5±3.6g (With 10mm Lens)
• 35.7±2g (With 12mm Lens)
• 40.7±2.1g (With 17mm Lens)
• 71.0±3.6g (With 25mm Lens)
• 110±5.5g (With 35mm Lens)
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification: ROHS2.0/REACH
Optical Lens: Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications
  • Forest Firefighting
  • Power Maintenance
  • Photovoltaic Inspection
  • Security Monitoring
  • Wearable Devices
  • Portable Devices
Product Advantages
  • Diverse Product Portfolio
    A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
  • Rich Product Variety
    Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
  • Outstanding Performance
    Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
  • Easy Integration
    Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What is DRI Range?
It is a means of measuring the distance at which an infrared detector can produce an image of specific target and can be divided into detection range, recognition range, identification range.

D (Detection): ability to distinguish an object from the background
R (Recognition): ability to classify the object class (animal, human, vehicle, boat …)
I (Identification): ability to describe the object in details (a man with a hat, a deer, a Jeep …)

According to Johnson's criteria, when the probability of target detail visible at the DRI distance is 50%, the minimum number line pairs of the target is 1:3:6 (or 1:4:8), and the corresponding minimum number of pixels is 2:6:12 (or 2:8:16).

Assuming that the target diameter is H, the focal length is f, the pixel size is d, and the number of line pairs is n, then the view distance L=H×f/(2n×d)
