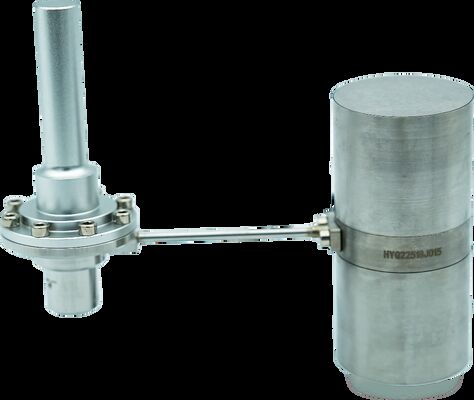

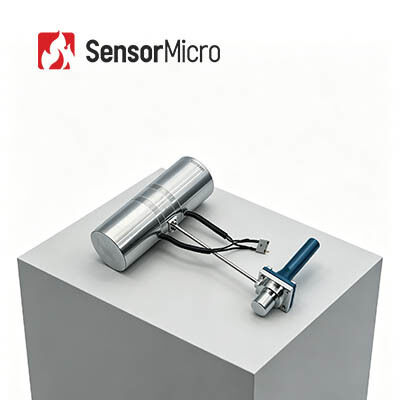

LS734 Linear Stirling Cryocooler with Low Power Consumption, High Reliability, and Compact Design for MCT Cooled Infrared Detectors

  • LS734 Linear Stirling Cryocooler with Low Power Consumption, High Reliability, and Compact Design for MCT Cooled Infrared Detectors
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number LS734
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Steady Power Consumption ≤10W (430mW@77K@20℃) MTTF ≥20000hrs
Integration Method IDDCA Type Linear Stirling Cryocooler
Weight ≤1.0kg Max Power Consumption 50W
Highlight

LS734 Cryocooler

,

Linear Stirling Cryocooler

,

MCT Cooled Infrared Detector Cryocooler
Leave a Message
Product Description
LS734 Linear Stirling Cryocooler for Cooling MCT Cooled Infrared Detector
Product Overview

The LS734 linear Stirling cryocooler incorporates advanced moving magnet linear motor technology and self-lubricating coatings to significantly enhance reliability and operational lifespan. The flexible connection between compressor and dewar via connecting pipes enables versatile layout configurations across various application scenarios.

Main Features
  • Rapid cooling capability
  • Wide operating temperature range
  • Low vibration and noise levels
  • High reliability for continuous operation
  • Designed for 24/7 long-term operation
Applications

Gas leak monitoring, security surveillance, and other scenarios requiring extended continuous operation.

Technical Specifications
Model LS734
Type Linear Stirling Cryocooler
MTTF ≥20000 hours
Maximum Size Compressor: Φ46×122 mm
Expander: Φ40×88 mm
Weight ≤1.0 kg
Cooling Power ≥1300 mW (@77K@20℃)
Operating Temperature -45℃ to +71℃
Storage Temperature -55℃ to +85℃
Environmental Specification GJB150A-2009
Input Voltage 24V DC
Max Power Consumption 50W
Steady Power Consumption ≤10W (430mW@77K@20℃)
Cooling Time ≤4 minutes (450J@77K@20℃)
Cold Finger Dimension Φ8 mm
Electronics Built-in
Integration Method IDDCA
Production Capabilities
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
What is a cryocooler used for?
Cryocoolers maintain sensors at extremely low temperatures to enable thermal imaging during long-term missions. Many high-end applications require these ultra-low temperatures for optimal sensor performance in image capture.
What are the main factors to measure the quality of a cryocooler?
Long operational lifespan and reliable performance are primary quality indicators. Our cryocoolers feature a wide operating temperature range and exceptional reliability, with MTTF (Mean Time to Failure) reaching 20,000 hours to meet 24/7 continuous operation requirements.
What is MTTF?
MTTF (Mean Time to Failure) measures component reliability by indicating the average operational duration before replacement is required. This metric provides insight into part quality and long-term value, with longer lifespans delivering greater operational value.
