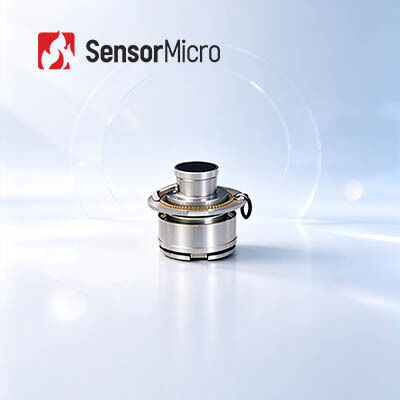

128x128 25μm Mid Wave MCT Cooled Infrared Detector Integrated Dewar Cooler Assembly

  • 128x128 25μm Mid Wave MCT Cooled Infrared Detector Integrated Dewar Cooler Assembly
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C125M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 128x128 NETD ＜20mK
Spectral Range 3.7~4.8μm MW Pixel Size 25μm
Highlight

Mid Wave Cooled Infrared Detector

,

FPA MCT Cooled Infrared Detector

,

128x128 Cooled Ir Detector
Leave a Message
Product Description

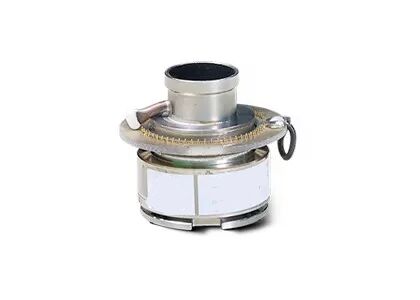

MCT Cooled Infrared Detector Mid Wave FPA 128x128 25 μm

The C125M MWIR is a cooled thermal imaging detector. It combines a maintenance-free 128*128 IDDCA with a miniature Joule Thomson cooler.

The C125M MWIR fully satisfies the requirements for thermal imaging and very short cool-down time to ensure operational efficiency.

Main Features
  • Resolution: 128*128
  • Pixel Pitch: 25 μm
  • High Sensitivity
  • Compact Design
  • Lightweight
Product Specifications
Model C125M MW
Material MCT
Resolution 128*128
Pixel Pitch 52 μm
Spectral Range 3.7 μm～4.8 μm MW
NETD ＜20 mK
Customized Service
Product Customization

Adjust configurations and adapt algorithms to meet industry-specific requirements.

On-Site Technical Support & Training

Provide core customers with hands-on system setup and operational training.

Joint Innovation for New Products & Markets

Collaborate with customers to co-develop innovative infrared application solutions.

FAQs
1. What is a cryocooler used for?

Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.

2. What are the main factors to measure the quality of a cryocooler?

Long battery life and reliable operation are the main factors to measure the quality of a cryocooler. SensorMicro cryocoolers have a wide operating temperature range and excellent reliability. Their MTTF (Mean Time to Failure) has reached 10,000 hours, which meets 24/7 boot operation requirements.

3. What is MTTF?

MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
