LWIR Infrared Thermal Surveillance Camera Module 640x512 9Hz 60Hz
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512 / 17μm||NETD||＜30mK|
|Camera Lens||Multiple Available||Frame Rate||9Hz/25Hz/30Hz/50Hz/60Hz|
|Start-up Time||＜10s||Spectral Range||8~14μm LW|
LWIR Uncooled Thermal Surveillance Camera,
640x512 Thermal Surveillance Camera,
9Hz LWIR Thermal Security Camera

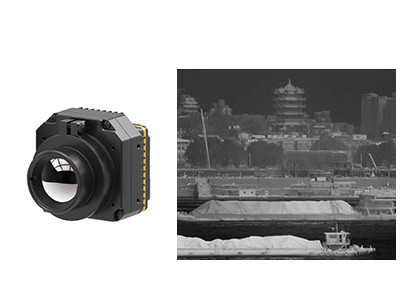

Uncooled Thermal Surveillance Camera Module LWIR 640x512 17μM
PLUG617 uncooled camera core consists of 640x512 / 17µm uncooled thermal camera sensor and provides clear image and superior performance.
PLUG617 LWIR infrared module is one of the PLUG series that are developed by Global Sensor Technology (GST). The PLUG617 thermal camera core is specially for the security and surveillance application. With it, the thermal security could sense an object’s heat radiation, capture images 24/7, regardless of environmental factors such as darkness, lowlight, strong backlight, etc.
GST cooled uncooled infrared detectors and thermal imaging modules can be widely used and integrated into security monitoring systems, such as smart city road traffic monitoring for improving the efficiency and safety of transport networks, infrastructure monitoring, fire security in the industrial areas, early fire detection for open areas or even over long distances, harbor protection, border security for preventing illegal border crossing, perimeter surveillance, maritime cruising, UAV payloads, electro optical system etc.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Typical Power Consumption||<1.2W|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm
GST cooled uncooled infrared detectors and thermal imaging modules can be widely used and integrated into security monitoring systems, such as smart city road traffic monitoring, infrastructure monitoring, fire security, early fire detection, harbor protection, border security, perimeter surveillance, maritime cruising, UAV payloads, electro optical system etc.
1.What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.
2. How many pseudo color can GST thermal imaging module offer?
- White Hot
- Hot Iron
- Red Hot
- White Hot
