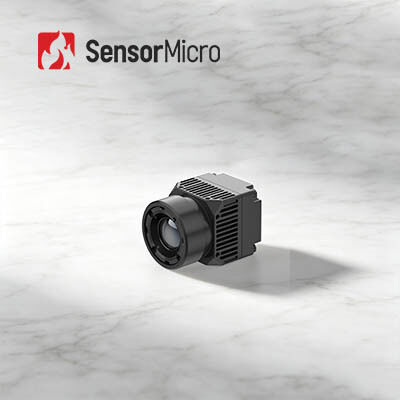

640×512 Resolution Uncooled Thermal Camera Module with ±0.5℃ Accuracy and 8μm Pixel Pitch for Body Temperature Screening

  • 640×512 Resolution Uncooled Thermal Camera Module with ±0.5℃ Accuracy and 8μm Pixel Pitch for Body Temperature Screening
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iHA608W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640×512 Power Consumption 0.6W
Spectral Range 8~14μm Pixel Pitch 8μm
Typical NETD ≤30mK Frame Rate 25Hz
Highlight

Thermal Camera Module 384x288

,

Uncooled Thermal Camera Module 17um

,

Body Temperature Screening Uncooled Thermal Camera
Leave a Message
Product Description
Body Temperature Screening Uncooled Thermal Camera Module 640×512/8μm
Product Overview

The iHA608W thermal module is specially developed for body temperature measurement and medical diagnosis. This advanced thermal imaging solution captures temperature data and heat distribution to enable radiation-free, non-invasive early disease diagnosis and long-distance, large-scale body temperature screening.

The module integrates an ApexCore 640×512/8μm infrared detector, precision optical lens, and comprehensive SDK for temperature measurement with accuracy up to ±0.5℃.

Main Features
  • Precise Measurement, Detailed Thermal Imaging - Designed specifically for non-contact body temperature measurement with accuracy of up to ±0.5°C. Medical-grade optical lens and dedicated medical image processing algorithms deliver clear imaging.
  • Compact Design, Lightweight Integration - Powered by an 8μm ApexCore infrared detector with small pixel pitch for compact form factor. Dimensions as small as 21×21×31.5mm and weight as low as 25±2g, ideal for integration into compact devices.
  • Fast Integration, Easy Development - Standardized Type-C + USB 2.0 interfaces for streamlined system integration. Provides Windows, Android, and Linux SDKs to lower development barriers.
Product Specifications
Model iHA608W
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display Medical/Pseudo Color
PC Software
Computer Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃~+50℃
Temperature Measurement Range 32℃~+42℃
Temperature Measurement Accuracy ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C)
Measurement Distance 0.5m-5 m; supports multi-distance temperature measurement via SDK
SDK Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration
Electrical
Standard External Interface USB(TYPE-C)
Communication Interface USB
Digital Video Interface USB2.0
Supply Voltage 5V±0.5
Typical Power Consumption 0.6W
Optical Lens
Focus Length 4mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV(H×V) 69.2°×55.4°
Mechanical
Size (including lens) 21mm×21mm×31.5mm (including 4mm lens)
Weight (including lens) 25g±2 (including 4mm lens)
Environmental Adaptability
Operating Temperature -10℃~+50℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS2.0/REACH
Industrial Applications

The iHA608W thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation, and related medical applications.

Production Capability
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and price is also a factor that needs to be considered. If image quality requirements are not high, you can choose infrared detectors with lower resolution such as 120x90, 256x192, or 400x300. If you need very clear images for special purposes such as remote monitoring, you can choose high-resolution infrared detectors of 1280x1024.
How to select right pseudo color for thermal imaging?
  • Gray white is more suitable for targets with small temperature differences
  • Red and blue is more suitable for scenes where problem points need to be identified
  • Iron red is the standard color palette for the power industry
Note: The thermal temperature measurement remains unchanged regardless of which color palette you choose.
How to choose a suitable infrared thermal camera lens?
  • Standard lens - Suitable for normal targets at appropriate distances
  • Telephoto lens - Suitable for relatively small targets that need to be viewed from long distances
  • Wide angle lens - Better for seeing more detail of objects at close distances
  • Macro lens - For viewing very tiny targets at close distances, such as chip circuits
