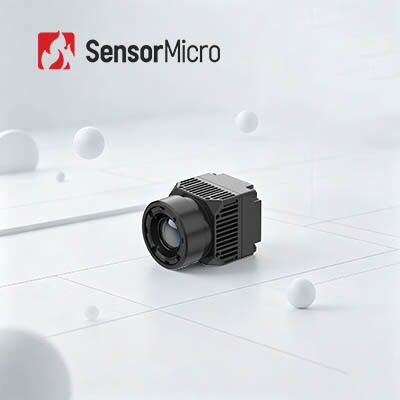

640x512 Resolution 8μm Pixel Pitch Thermal Camera Module for Non-Invasive Early Disease Diagnosis

  • 640x512 Resolution 8μm Pixel Pitch Thermal Camera Module for Non-Invasive Early Disease Diagnosis
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iHA608W
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512 Power Consumption 0.6W
Spectral Range 8~14μm Pixel Pitch 8μm
Typical NETD ≤30mK Frame Rate 25Hz
Highlight

384x288 Thermal Imaging Camera

,

17um Thermal Imaging Camera

,

Non Invasive Thermal Camera
Leave a Message
Product Description
640×512 8μm Thermal Camera Module for Non-Invasive Early Disease Diagnosis
Product Overview

The iHA608W thermal module is specially developed for medical diagnosis applications. This advanced thermal imaging system captures precise temperature data and heat distribution patterns, enabling radiation-free, non-invasive early disease diagnosis and long-distance, large-scale body temperature screening.

Featuring the ApexCore 640×512/8μm infrared detector, the iHA608W is engineered specifically for non-contact body temperature measurement with exceptional accuracy up to ±0.5°C. Equipped with dedicated medical image processing algorithms, it delivers clear, detailed thermal imaging, accurately visualizes temperature distribution, and provides reliable temperature measurement data.

Main Features
Precise Measurement, Detailed Thermal Imaging
  • Designed specifically for non-contact body temperature measurement with accuracy up to ±0.5°C
  • Medical-grade optical lens and dedicated medical image processing algorithms deliver clear, detailed images
Compact Design, Lightweight Integration
  • Powered by an 8μm ApexCore infrared detector with small pixel pitch for compact form factor
  • Dimensions as small as 21×21×31.5mm and weight as low as 25±2g, ideal for integration into compact medical devices
Fast Integration, Easy Development
  • Standardized Type-C + USB 2.0 interfaces for streamlined system integration
  • Comprehensive Windows, Android, and Linux SDKs to lower development barriers and accelerate implementation
Product Specifications
Model iHA608W
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display Medical/Pseudo Color
PC Software
Computer Software Module Control & Video Display
Temperature Measurement
Operating Temperature 10℃~+50℃
Temperature Measurement Range 32℃~+42℃
Temperature Measurement Accuracy ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C)
Measurement Distance 0.5m-5m; supports multi-distance temperature measurement via SDK
SDK Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration
Electrical
Standard External Interface USB(TYPE-C)
Communication Interface USB
Digital Video Interface USB2.0
Supply Voltage 5V±0.5
Typical Power Consumption 0.6W
Optical Lens
Focus Length 4mm
Type of Lens Fixed Focus Athermal
F/# 1
FOV(H×V) 69.2°×55.4°
Mechanical
Size (including lens) 21mm×21mm×31.5mm (including 4mm lens)
Weight (including lens) 25g±2 (including 4mm lens)
Environmental Adaptability
Operating Temperature -10℃~+50℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction
ESD 6kV contact discharge; 8kV air discharge
Certification
Environmental Certification ROHS2.0/REACH
Industrial Applications

The iHA608W thermal module is expected to be widely used in various medical fields including Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation, and other healthcare applications both currently and in the future.

Our Service Approach
Pre-Sales
  • Requirement Analysis
  • Scenario Assessment
  • Product Selection
  • Customized Solutions
Deployment
  • Rapid Delivery
  • System Integration & Testing
  • Technical Training
  • Application Guidance
After-Sales
  • Remote Diagnostics
  • Warranty Service
  • Firmware Upgrades
  • Technical Maintenance
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?

Low light requires natural light and transforms weak natural light images into enhanced electronic images through image intensifiers.

Active IR actively emits infrared light and uses infrared beams reflected by the target. It has very poor concealment characteristics.

Thermal imaging doesn't require any light and is a passive infrared night vision technology that detects infrared radiation differences between targets and scenes or different parts of an object. It is not affected by changes in surrounding lighting conditions and operates effectively during night or even in fog, rain, and other harsh environments.

Can you block thermal imaging?

In most cases, thermal imaging cannot be blocked. However, infrared rays cannot penetrate walls, and glass can block IR radiation. Therefore, if you need to avoid detection, you can conceal yourself behind glass or walls to block thermal imaging detection.
