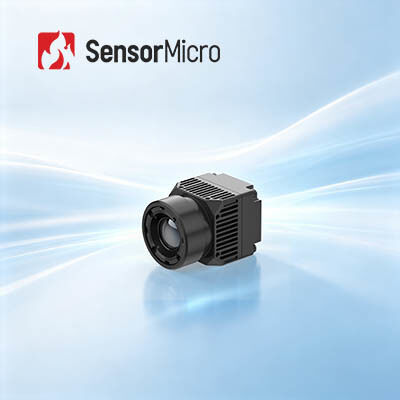

640x512 Resolution 8μm Pixel Pitch Uncooled Infrared Camera Module with Typical NETD 30mk for Medical Diagnosis
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS; Reach |
| Model Number | iHA608W |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Power Consumption | 0.6W |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 8μm |
| Typical NETD | ≤30mk | Frame Rate | 25Hz |
| Highlight | Uncooled Infrared Camera Module,384x288 Uncooled Infrared Camera Module,Typical NETD 50mk Thermal Camera Core |
||
Product Description
640x512/8μm Uncooled Infrared Camera Module Typical NETD 30mk For Medical Diagnosis
Product Overview
Model iHA608W integrates ApexCore 640 × 512 uncooled infrared detector with 8μm pixel pitch, optimally developed for non-contact biometric temperature measurement with measurement precision controlled at ±0.5℃. Custom medical image processing firmware is embedded to optimize thermal imaging granularity, reconstruct real-time target thermal distribution and ensure the authenticity and stability of measured temperature values.
The 8μm mini pixel layout greatly reduces the module volume and structural dimension. Dual interfaces including Type-C video output and USB2.0 data communication are reserved to shorten system integration cycles. Applicable scenarios cover clinical medical diagnosis, mass disease screening, animal husbandry temperature acquisition and biomonitoring tasks.
Main Features
Accurate Measurement, Smooth Imaging
• Developed for non-contact biological temperature detection, featuring ±0.5℃ high measurement accuracy
• Matched with medical-grade lens and exclusive medical image processing algorithms for sharper thermal imaging
Ultra-Compact Module for Easy Integration
• Adopts 8μm ApexCore small-pixel infrared detector to miniaturize module structure
• Measures only 21×21×31.5 mm with weight controlled at 25±2 g, perfectly matching various compact devices
Efficient System Integration and Reduced Development Complexity
• Standard Type-C + USB2.0 interfaces for faster integration
• Windows / Android / Linux SDK offered to simplify development work
Product Specifications
| Model | iHA608W |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | Vox |
| Resolution | 640×512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | Medical Color/ pseudo-color |
| PC Software | |
| Software | Module Control & Video Display |
| Temperature Measurement | |
| Working Temperature | 10°C ~ +50°C |
| Measurement Range | 32℃ ~ +42℃ |
| Measurement Accuracy | ±0.5℃ after starting up for 2 minutes (When target temperature range is 32~42℃, and ambient temperature is 23±3℃) |
| Measurement Distance | 0.5m to 5m, and temperature measurements at various distance can be achieved through the SDK |
| SDK | SDKs for Windows/Android/Linux are available Enabling video stream analysis, module control, comprehensive array temperature measurement, temperature imaging, temperature window setting, and integration of multiple devices |
| Electrical | |
| Standard External Interface | USB(TYPE-C) |
| Communication Interface | USB |
| Digital Video Interface | USB2.0 |
| Supply Voltage | 5V±0.5 |
| Typical Power Consumption | 0.6W |
| Optical lens | |
| Focal length | 4mm |
| Lens Type | Fixed Focus Athermal |
| F# | 1 |
| FOV (H×V) | 69.2°×55.4° |
| Physical Dimensions | |
| Size (mm) | 21mm×21mm×31.5mm (With 4mm Lens) |
| Weight (g) | 25g±2 (With 4mm Lens) |
| Environmental Adaptability | |
| Operating Temperature | -10℃～+50℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Shock | Half Sine Wave, 40g/11ms, Shock Direction 3-axis, 6-direction |
| ESD | Contact Discharge: 6KV Air Discharge: 8KV |
| Certification | |
| Environment Protection | ROHS2.0/REACH |
Industrial Applications
The iHA608W thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.
Product Portfolio Advantages
Diverse Product Portfolio
A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety
Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance
Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability--designed to perform under a wide range of environmental challenges.
Easy Integration
Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
-
What is NETD?
NETD refers to "Noise Equivalent Temperature Difference". It is a measure for how well a thermal imaging detector is able to distinguish between very small differences in thermal radiation in the image. NETD is typically being expressed in milli-Kelvin (mK). Usually the lower the NETD figure is, the higher the thermal sensitivity indicates. -
What is SWaP3?
SWaP3 refers to size, weight, power, performance and price. It indicates the technology trend of infrared industry. -
What is DRI?
DRI usually refers detection, recognition and identification distance of a thermal imaging system. It is a crucial parameter to judge the performance of the thermal imaging system.
