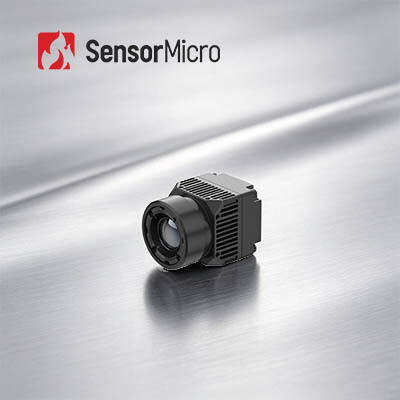

640×512 Resolution 8μm Pixel Pitch Infrared Camera Core with ±0.5°C Accuracy for Medical Thermography

Meet the iHA608W — your reliable thermal solution for non-contact biological temperature testing, powered by the ApexCore 640×512/8μm elite infrared detector and delivering outstanding temperature accuracy up to ±0.5°C. Tailored medical imaging algorithms bring vivid, high-fidelity thermal visuals, pinpointing subtle temperature variations and furnishing consistent, accurate temperature readings every time.

Thanks to its advanced 8μm small-pixel structure, the hardware achieves a compact footprint without sacrificing performance. Supported by Type-C video interface and USB2.0 data port for plug-and-play fast integration. Perfectly suited for medical diagnostic work, public health screening, livestock temperature monitoring and numerous biomedical temperature measurement applications.

• Accurate Measurement, Smooth Imaging — Developed for non-contact biological temperature detection, featuring ±0.5℃ high measurement accuracy. Matched with medical-grade lens and exclusive medical image processing algorithms for sharper thermal imaging.
• Ultra-Compact Module for Easy Integration — Adopts 8μm ApexCore small-pixel infrared detector to miniaturize module structure. Measures only 21×21×31.5 mm with weight controlled at 25±2 g, perfectly matching various compact devices.
• Efficient System Integration and Reduced Development Complexity — Standard Type-C + USB2.0 interfaces for faster integration. Windows / Android / Linux SDK offered to simplify development work.

The iHA608W thermal module is expected to be widely used in the fields of Disease Screening, Traditional Chinese Medicine Physiotherapy, Health Check-up, Rehabilitation etc. at present and in the future.

• Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
• On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
• Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions

It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 384x288. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.

• The gray white is more suitable for the target with small temperature difference
• The red and blue is more suitable for the scene where the problem points need to be found
• The iron red is the standard color palette of the power industry

• Standard lens can meet normal targets with appropriate distance
• Telephoto lens is suitable for targets that is relatively small and needs to be viewed from a long distance
• Wide angle lens is better for seeing more detail of objects at close distance
• Macro lens is for seeing very tiny target with close distance, such as chip circuit
