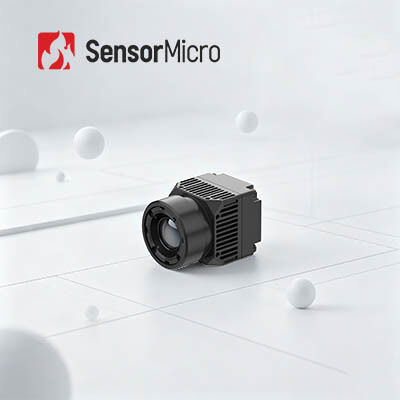

640×512 Resolution 8μm Pixel Size Thermal Imaging Camera Module for Medical Thermography Solutions
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS; Reach |
| Model Number | iHA608W |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Power Consumption | 0.6W |
|---|---|---|---|
| Spectral Range | 8~14μm | Pixel Pitch | 8μm |
| Typical NETD | ≤30mk | Frame Rate | 25Hz |
| Highlight | Medical Thermography Solutions Thermal Cameras,25Hz Thermal Infrared Imaging Cameras,5m Distance Infrared Imaging Cameras |
||
Product Description
640 × 512/8μm Thermal Imaging Camera Module for Medical Thermography Solutions
Product Overview
The iHA608W thermal imaging module is configured with an ApexCore 640 × 512 infrared detector featuring an 8-micrometer pixel size, purpose-built for non-contact biological temperature measurement with ±0.5°C precision. Integrated medical image processing algorithms enhance thermal image definition, precisely characterize spatial temperature distribution, and generate high-reliability temperature measurements. The compact 8μm pixel design minimizes the mechanical structure, while Type-C video and USB 2.0 interfaces enable efficient system integration.
Main Features
- Accurate Measurement, Smooth Imaging: ±0.5°C measurement accuracy for non-contact biological temperature detection with medical-grade lens and exclusive image processing algorithms
- Ultra-Compact Module for Easy Integration: 8μm ApexCore small-pixel infrared detector enables miniaturized structure measuring 21×21×31.5 mm with weight of 25±2 g
- Efficient System Integration: Standard Type-C + USB2.0 interfaces with Windows/Android/Linux SDK for simplified development
Product Specifications
| Model | iHA608W |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | Vox |
| Resolution | 640×512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | Medical Color/ pseudo-color |
| Temperature Measurement | |
| Working Temperature | 10°C ~ +50°C |
| Measurement Range | 32℃ ~ +42℃ |
| Measurement Accuracy | ±0.5℃ after 2 minutes startup |
| Measurement Distance | 0.5m to 5m |
| Electrical | |
| Standard External Interface | USB (TYPE-C) |
| Communication Interface | USB |
| Digital Video Interface | USB2.0 |
| Supply Voltage | 5V±0.5 |
| Typical Power Consumption | 0.6W |
| Optical Lens | |
| Focal length | 4mm |
| Lens Type | Fixed Focus Athermal |
| F# | 1 |
| FOV (H×V) | 69.2°×55.4° |
| Physical Dimensions | |
| Size (mm) | 21mm×21mm×31.5mm (With 4mm Lens) |
| Weight (g) | 25g±2 (With 4mm Lens) |
Industrial Applications
The iHA608W thermal module is designed for disease screening, traditional Chinese medicine physiotherapy, health check-ups, rehabilitation, and other medical temperature measurement applications.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references
- Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
- Remote Technical Support: 24/7 support with quick response and timely resolution
- Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
- What are the advantages of uncooled infrared detectors?
Uncooled infrared focal plane detectors operate at room temperature without cooling devices, offering fast startup, low power consumption, compact size, light weight, long lifespan, and cost-effectiveness. - What are the key considerations for an infrared detector/thermal module for your application?
Detector resolution, pixel size, NETD, image quality, lens options, power consumption, size and weight, mechanical & electrical interface, and budget.
