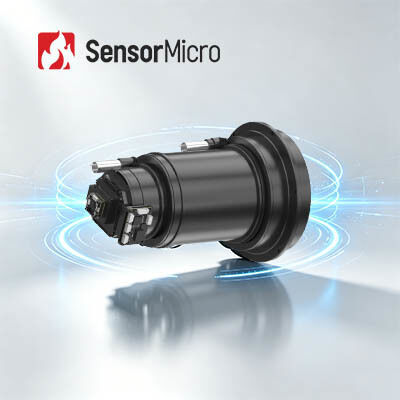

Uncooled Thermal Camera Module with 1280x1024 Resolution and 12μm Pixel Size for Shutterless Operation in Security & Monitoring

  • Uncooled Thermal Camera Module with 1280x1024 Resolution and 12μm Pixel Size for Shutterless Operation in Security & Monitoring
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm NETD ≤30mK
Frame Rate 25Hz/30Hz/50Hz Spectral Range 8~14μm
Image Algorithm NUC/DRC/DNS/DDE/SFFC Supply Voltage 2.7V~5.3V
Highlight

12uM Uncooled Thermal Camera Module

,

RoHS Security Thermal Camera Module

,

1280x1024 Monitoring Thermal Camera Core
Leave a Message
Product Description
Uncooled HD Thermal Camera Module 1280x1024 12μm for Security & Monitoring
Product Overview

The iSE1212 uncooled thermal camera core is developed by SensorMicro, specializing in the design, manufacture, sales, and marketing of thermal imaging detectors and infrared modules.

This infrared thermal module delivers high-resolution thermal images up to 1280x1024 pixels, revealing the smallest details. The reduced 12μm pixel size provides superior spatial resolution and enables shorter optical lens focus to achieve the same mission range.

The iSE1212 infrared thermal core is versatile, with visual information solutions covering day, night, low visibility, and all weather conditions.

Main Features
  • High-Definition Imaging with Smooth Visuals: Delivers megapixel thermal imaging with smooth, lag-free performance. Offers wider field of view, larger angle coverage, longer detection range, and enhanced detail.
  • Shutterless Operation for Silent Performance: No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
  • Feature-Rich and Integration-Friendly: Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with a wide range of optical lenses and extended components, enabling easy secondary development and flexible system integration.
Product Specifications
Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4(Button functions customizable)
OLED Driving
Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals
Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A
Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software
Computer Software Module Control & Video Display
Electrical
Standard External Interface
50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 38×39×28 68×69×30.2
Bare Core Weight(g) 65±3 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm
Shutter Components Optional
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration,, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 500g@1ms
Certification ROHS2.0/REACH
Industrial Applications

The iSE1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads, and more.

IR Detector Solution
Uncooled Thermal Camera Module with 1280x1024 Resolution and 12μm Pixel Size for Shutterless Operation in Security & Monitoring 0
Frequently Asked Questions
What is Pseudo Color?

Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system, displayed on the monitor in grey level or pseudo color. This enables obtaining the temperature distribution of objects. To facilitate easy visual analysis of thermal images, false colors representing temperature differences are used.

How many pseudo colors can our thermal imaging module offer?

Our thermal imaging module offers the following pseudo color options:

  • White Hot
  • Lava
  • Ironbow
  • Hot Iron
  • Medical
  • Arctic
  • Rainbow1
  • Rainbow2
  • Red Hot
  • White Hot
