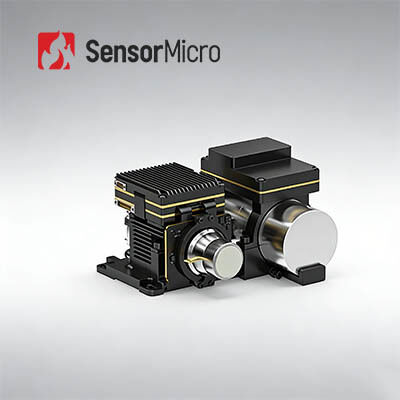

Cooled Thermal Camera Core with 320x256 Resolution and 30μm Pixel Size for VOCs Gas Leak Detection

  • Cooled Thermal Camera Core with 320x256 Resolution and 30μm Pixel Size for VOCs Gas Leak Detection
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number LFM330Z3
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Style Cooled Infrared Module Resolution 320x256 / 30μm
NETD 10mK Spectral Range 3.2±0.1~3.5±0.1μm
Working Temperature -40℃～+71℃ Optional Lens Fixed Zoom
Highlight

Cooled Thermal Camera Core 30um

,

320x256 Cooled Thermal Camera Core

,

VOCs Gas Leak Detection Thermal Camera
Leave a Message
Product Description
Cooled Thermal Camera Core 320x256 30μm for VOCs Gas Leak Detection
Cooled Thermal Camera Core 320x256 30μm For VOCs Gas Leak Detection

Volatile Organic Compounds, or VOCs, are gases emitted into the air from products or processes. Some VOCs are harmful by themselves, including carcinogens, and they can react with other gases to form additional air pollutants.

The LFM330Z3 is a cooled infrared thermal imaging module specifically designed for gas leakage detection. It integrates a 320x256/30μm MCT cooled MWIR infrared detector and utilizes spectral wavelength filtering technology to visualize invisible VOCs that cannot be seen by the naked eye.

Main Features
High Sensitivity Detection
  • Highly sensitive infrared detector with NETD 10mK
  • Highly efficient for low gas concentration and slow gas flow applications
  • Long-distance non-contact detection of VOCs including alkanes, alkenes, alcohols, benzenes, ketones, and more
Superior Performance
  • Professional gas detection image processing algorithm
  • Various lens options for multiple FOV and application scenarios
Product Specifications
Module model LFM330Z3
Resolution 320×256
Pixel size 30μm
Spectral response 3.2±0.1μm～3.5±0.1μm
Typical NETD 10mK (F1.5)
Frame rate 30Hz
Digital video Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cryocooler RS058I | LS713 | LS734
Cooling time (23℃) ≤8min@12V | ≤6.5min@12V | ≤6.5min@24V
Stable power consumption (23℃) ≤10W | ≤11W | ≤16W
Size (mm) 142×58.5×80 | 108×116×73 | 130×131×80
Weight (g) ≤680 | ≤800 | ≤1610
Working temperature -40℃～+71℃
Focal length 23mm/55mm/25-75mm
Industrial Applications

The LFM330Z3 gas leak detection thermal imaging camera is used for visualizing invisible VOCs (volatile organic compounds) and detecting gas leakage including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene, and more.

LFM330Z3 Cooled Thermal Camera Core for VOCs Gas Leak Detection
Our Product Line
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
FAQs
1. What is Pseudo Color?

Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system, displayed on the monitor in grey level or pseudo color. This enables visualization of temperature distribution. False colors representing temperature differences make thermal images easier to analyze visually.

2. How many pseudo colors can SensorMicro thermal imaging module offer?
  • White Hot
  • Lava
  • Ironbow
  • Hot Iron
  • Medical
  • Arctic
  • Rainbow1
  • Rainbow2
  • Red Hot
  • White Hot
