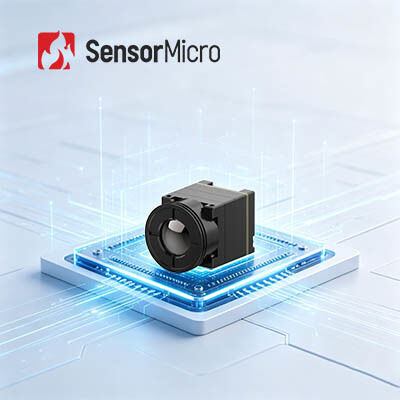

Uncooled LWIR Thermal Camera Module with 640x512 Resolution and 12μm Pixel Pitch for Ultra-Low 0.65W Power Consumption
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iTL612 PLUS |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 | Frame Rate | 25/30/50Hz |
|---|---|---|---|
| Power Consumption | 0.65W | Spectral Range | 8~14μm |
| Typical NETD | ≤25mK | Pixel Pitch | 12μm |
| Highlight | 12uM Drone Thermal Camera,Uncooled LWIR Drone Thermal Camera,Uncooled Infrared Detector 640x512 |
||
Product Description
Uncooled LWIR Thermal Camera Module 640x512 12μm for Firefighting & Rescue
Uncooled LWIR 640x512 12 μm Thermal Camera Core for Firefighting & Rescue
Welcome to the next generation of miniature infrared thermal image sensing. The iTL612 PLUS thermal camera module, powered by ApexCore 640×512/12μm wafer-level detector, shrinks high-performance thermal imaging to just 13.7 grams. With sensitivity down to 25 mK and power consumption as low as 0.65W, it opens doors for portable devices, wearables, and handheld devices that demand clarity, compactness, and connectivity—all seamlessly integrated.
The iTL612 PLUS infrared camera module offers deterministic performance for engineers prioritizing minimal load without compromising thermal sensitivity or data flexibility.
Main Features
- Unmatched Lightness and Minimal Load: Ultra-miniature size: 17.3×17.3×24.2 mm (including 9.1 mm lens); Ultra-lightweight: 13.7±0.5g (including 9.1 mm lens); Ultra-low power consumption: as low as 0.65W
- Powered by ApexCore, More Sensitive and Clearer: Developed based on next-generation ApexCore infrared detector with thermal sensitivity as low as ≤25 mK; Enhanced with next-generation image processing algorithms for clearer imaging
- Easy Development & Seamless Integration: Multiple lens options available for various application scenarios; Supports multiple image output interfaces: DVP8, LVDS, MIPI, USB 2.0, and BT.656; RAW/YUV/Matrix-TEMP data output with serial port control
Product Specifications
| Model | iTL612PLUS |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤25mK |
| Image Processing | |
| Digital Frame Rate | 25/30Hz/50Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/Matrix-TEMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | 10 (Black Hot/White Hot/Pseudo Color) |
| PC Software | |
| Infrared Module | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 30Pin_HRS interface: DF40C-30DP-0.4V(51) |
| MIPI External Interface | 34Pin_Panasonic Connector Interface: AXE634124 |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/LVDS/MIPI/USB2.0/BT.656 |
| Supply Voltage | 4.2-5.5V |
| Typical Power Consumption | 0.65W |
| Mechanical | |
| Size (including lens) | 17.3×17.3×24.2 (9.1mm lens) 17.3×17.3×30.2 (13mm lens) 17.3×17.3×38 (24mm lens) 17.3×17.3×54 (45mm lens) |
| Weight (including lens) | 13.7±0.5g (9.1mm lens) 17.9±0.5g (13mm lens) 27.3±0.5g (24mm lens) 51±0.5g (45mm lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35g, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | Fixed Focus Athermal: 9.1/13/24/45mm |
Industrial Applications
The iTL612 PLUS thermal camera module can be used for Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices, and more.
About Us
As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.
Frequently Asked Questions
About metal packaging infrared detector
Metal packaging uses metal tube shell, thermoelectric cooler (TEC) and columnar getter. The TEC plays an important role in stabilizing the working temperature so that the infrared detector works at room temperature, thereby improving the ability of thermal imaging sensors to adapt to extreme environments, such as heavy fog, rain and snow. However, the disadvantage is that the cost is too high, accounting for more than 60% of the total cost of the entire uncooled products production, and causing a long production cycle. Such packaging method is for high-end applications.
What are the applications of thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT, and more.
Which fields can the infrared White Hot color be used?
White hot is the most commonly used false color. White indicates high temperature, and black indicates low temperature. It has strong applicability and is in line with human eye observation habits, mainly used for observation purposes.
