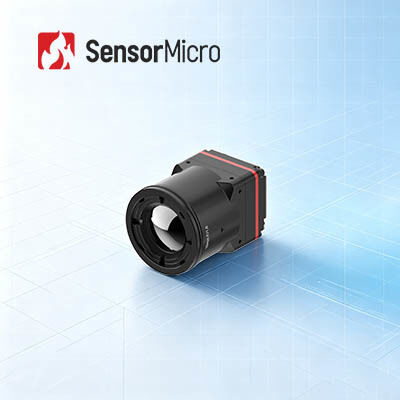

Uncooled LWIR Thermal Module with 1280x1024 Resolution and 8μm Pixel Pitch VOx Microbolometer

  • Uncooled LWIR Thermal Module with 1280x1024 Resolution and 8μm Pixel Pitch VOx Microbolometer
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Power Consumption 1W Spectral Range 8~14μm
Pixel Pitch 8μm Typical NETD ≤30mK
Resolution 1280x1024 Frame Rate 25/30Hz
Highlight

Drones Uncooled LWIR Thermal Module

,

VOx Microbolometer LWIR Thermal Module

,

LWIR Thermal Camera Core 12uM
Leave a Message
Product Description
Uncooled LWIR Thermal Module With 1280x1024/8μm VOx Microbolometer
Product Overview

Designed to cut down R&D cycle and integration difficulty, the iTL1208 is a plug-and-play megapixel infrared camera core optimized for fast embedded development. This ultra-miniature module (22.6×22.6×34.5 mm, 35.7g with 12mm lens) adopts an 8μm 1280×1024 high-resolution infrared detector and maintains 30mK low NETD for stable high-quality output.

We simplify the whole integration workflow: multiple interchangeable optical lens options are available to match different field viewing angle demands; mainstream MIPI CSI interface guarantees high-speed video transmission; both RAW original thermal data and YUV encoded data output support secondary algorithm development. Users can configure all camera parameters conveniently via standard serial port or I2C bus control. The best cost-effective thermal core for engineer teams developing handheld and mobile thermal imaging end products.

Main Features
Extreme Lightweight Design
  • Compact size of 22.6×22.6×34.5mm and a weight of 34.5g (including a 12 mm lens)
  • Among the highest levels of integration in its class
High Sensitivity, Precise Detection
  • 8μm ultra-small pixel size with 1280 × 1024 resolution, delivering fine detail and clear images
  • Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
Simplified Development, Fast Integration
  • Multiple optical lens options available to meet diverse application requirements
  • Supports MIPI CSI image output interface
  • RAW and YUV image data output, with control via serial port/I2C
Product Specifications
Model iTL1208
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 8μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30Hz
Start-up Time: ≤6s
Digital Video: RAW/YUV
Image Algorithm: NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software PC Software: Module Control & Video Display
Electrical Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface: TTL-232/I2C
Digital Video Interface: MIPI-CSI
Supply Voltage: 4.5-5.5V
Typical Power Consumption 1W
Mechanical - Size (including lens) With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm)
With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm)
With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm)
With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm)
With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm)
With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm)
Mechanical - Weight (including lens) 85.5±4.5g (With 5mm lens)
70.5±3.6g (With 10mm lens)
35.7±2g (With 12mm lens)
40.7±2.1g (With 17mm lens)
71.0±3.6g (With 25mm lens)
110±5.5g (With 35mm lens)
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications

The iTL1208 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro infrared detectors / thermal camera cores are widely used in many industries such as:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
