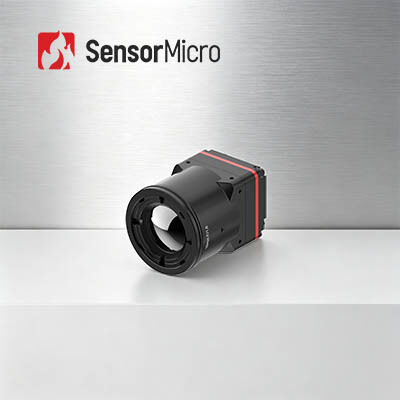

Ultra Clear 1280x1024 Resolution LWIR Infrared Camera Module with 8μm Pixel Pitch and ≤30mK NETD

The iTL1208 megapixel infrared camera core redefines SWaP optimization for modern thermal vision hardware. First-class Portability: Only 35.7 grams (12mm lens included) with 22.6×22.6×34.5mm tiny dimensions, ranking top-tier in integration level among peer megapixel infrared modules. Leading Detection Performance: Industry-standard 8μm ultra-small pixel size, 1280×1024 full megapixel resolution and ≤30mK ultra-low NETD spot tiny temperature differences that invisible to ordinary thermal cameras. Effortless Deployment: Diverse lens compatibility, universal MIPI output, dual RAW/YUV data modes and dual-channel control protocols. Upgrade your thermal devices with the iTL1208 for superior performance in surveillance, industrial testing and emergency response scenarios.

• Extreme Lightweight Design
  • Compact size of 22.6×22.6×34.5mm and a weight of 34.5g (including a 12 mm lens)
  • Among the highest levels of integration in its class
• High Sensitivity, Precise Detection
  • 8μm ultra-small pixel size with 1280 × 1024 resolution, delivering fine detail and clear images
  • Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
• Simplified Development, Fast Integration
  • Multiple optical lens options available to meet diverse application requirements
  • Supports MIPI CSI image output interface
  • RAW and YUV image data output, with control via serial port/I2C

The iTL1208 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

• Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
• Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
• Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
• Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
• Warranty: Original parts and strict process adherence to restore optimal performance.

It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 384x288. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.

- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.

- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it's suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
