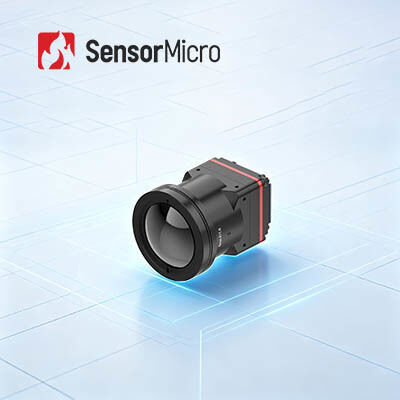

1280x1024 Resolution 8μm Pixel Size LWIR Thermal Camera Core with ≤30mK NETD for Long Range Security

The iTL1208 infrared camera core integrates a 1280x1024 / 8μm wafer level package (WLP) infrared thermal detector. This uncooled LWIR thermal imaging module operates within a spectral range of 8 to 14μm.

The iTL1208 is a compact 8μm megapixel infrared camera core engineered for next-generation SWaP optimization. Measuring just 22.6 * 22.6 * 34.5 mm and weighing only 35.7g (including a 12 mm lens), it delivers exceptional portability without compromising performance.

Featuring a megapixel large-format detector, the iTL1208 provides high-definition thermal imaging with industry-leading 8μm pixel size allowing for higher integration density. With NETD down to 30mK and enhanced by advanced image optimization algorithms, it captures finer thermal details with greater clarity. Designed especially for handheld devices and mobile platforms, it is ideal for security surveillance, industrial inspection, firefighting, rescue operations, and other applications requiring compact yet high-resolution thermal imaging.

• Compact size of 22.6*22.6*34.5mm and a weight of 34.5g (including a 12 mm lens)
• Among the highest levels of integration in its class

• 8μm ultra-small pixel size with 1280 * 1024 resolution, delivering fine detail and clear images
• Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences

• Multiple optical lens options available to meet diverse application requirements
• Supports MIPI CSI image output interface
• RAW and YUV image data output, with control via serial port/I2C

The iTL612/R thermal imaging module can be widely used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs.

SensorMicro exists to empower people and systems to see beyond the surface--into the patterns, the problems, and the possibilities that lie beneath.

By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity.

Heeding to our insistence on being self-made and customer-first has become a sure recipe for SensorMicro's momentum. As our business spans much of the globe, we've charged ahead on all fronts--from security, firefighting, industrial inspection, medical care, and machine vision, to environmental monitoring and key aspects of carbon neutrality--helping partners unlock the full potential of intelligent infrared sensing, and connecting the dots of life.

We are more than an infrared technology company. We are a community of people committed to building a sustainable, ethical, and human-centered future. Every pixel of innovation we create is a promise -- a promise to protect, to empower, and to serve.

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.

• The detector resolution
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget

• The gray white is more suitable for the target with small temperature difference
• The red and blue is more suitable for the scene where the problem points need to be found.
• The iron red is the standard color palette of the power industry.
• Note: no matter which palette you choose, the thermal temperature will not change at all.
