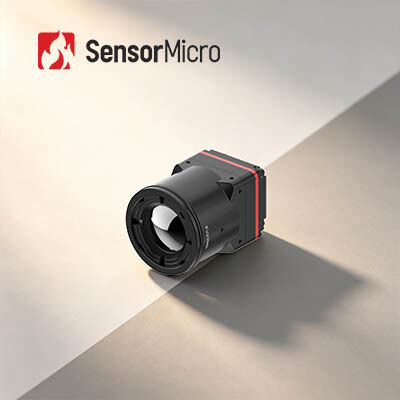

HD 1280x1024 Resolution Thermal Imaging Module with 8μm Pixel Size and 30mK Thermal Sensitivity for Precision Detection
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iTL1208 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Typical NETD | ≤30mK | Power Consumption | 1W |
|---|---|---|---|
| Spectral Range | 8~14μm | Frame Rate | 25/30Hz |
| Pixel Pitch | 12μm | Resolution | 1280x1024 |
| Highlight | Drones Thermal Imaging Module 640x512,Industrial Thermal Imaging Module 12uM,Thermography Lwir Camera Core |
||
Product Description
HD Thermal Imaging Module 1280x1024/8μm for Forest Firefighting
Product Overview
The iTL1208 is a high-integration 8μm megapixel infrared camera core specifically designed for SWaP-sensitive mobile applications. With compact dimensions of 22.6×22.6×34.5mm and weighing just 35.7g with a 12mm lens, it delivers 1280×1024 HD thermal imaging and 30mK high thermal sensitivity. Featuring MIPI CSI interface, RAW/YUV dual output and serial/I2C control, this easy-integration module is ideal for handheld, security, industrial, firefighting and rescue thermal imaging equipment.
Main Features
Extreme Lightweight Design
- Compact size of 22.6×22.6×34.5mm and weight of 34.5g (including 12mm lens)
- Among the highest levels of integration in its class
High Sensitivity, Precise Detection
- 8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images
- Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
Simplified Development, Fast Integration
- Multiple optical lens options available to meet diverse application requirements
- Supports MIPI CSI image output interface
- RAW and YUV image data output, with control via serial port/I2C
Product Specifications
| Model | iTL1208 |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25/30Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| PC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 34Pin_Connector Interface: BP04SD-34-0065-R0 |
| Communication Interface | TTL-232/I2C |
| Digital Video Interface | MIPI-CSI |
| Supply Voltage | 4.5-5.5V |
| Typical Power Consumption | 1W |
| Mechanical | |
| Size (including lens) |
With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm) With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm) With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm) With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm) With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm) With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm) |
| Weight (including lens) |
85.5±4.5g (With 5mm lens) 70.5±3.6g (With 10mm lens) 35.7±2g (With 12mm lens) 40.7±2.1g (With 17mm lens) 71.0±3.6g (With 25mm lens) 110±5.5g (With 35mm lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | Fixed Focus Athermal: 5/10/12/17/25/35mm |
Industrial Applications
The iTL1208 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices, and more.
Customized Services
- Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
- On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
- Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
What is infrared thermography?
Thermography is a new and effective non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
What can infrared thermography be used for?
Infrared thermal imaging can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals, and much more.
What are the advantages of infrared thermography?
For non-destructive testing:
- Simple to test and quick to respond without damage
- Saves costs, increases work efficiency, reduces manpower and equipment depreciation
- Very efficient for finding hidden problems in the human body
- 100% safe without radiation and pain
- Ideal tool for early health screening
