Drones Thermal Imaging Module 640x512 12μM With Industrial Thermography
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spectral Range||8~14μm||Pixel Pitch||12μm|
|Typical NETD||≤40mK||Frame Rate||30Hz|
Drones Thermal Imaging Module 640x512,
Industrial Thermal Imaging Module 12uM,
Thermography Lwir Camera Core

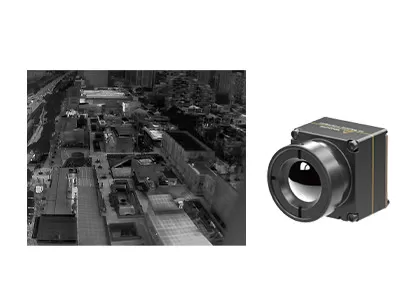

640x512 12μm Thermal Imaging Module for Drones with Industrial Thermography
The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm.
iTL612 thermal camera module features in sharp and crisp image presentation, compact size and low cost. Oriented for fully optimized SWaP, iTL612R uncooled thermal module provides a reliable solution for infrared system integration with limited space. Its compact structure has reached top level of the same specification module. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Compact & Lightweight Design
• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
• Weight: 20.8g±1.5g (with 9.1mm lens)
• Low power consumption as low as 0.7W
Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control
|IR Detector Performance|
|Sensitive Material||Vanadium Oxide|
|Image Algorithm||Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
|Image Display||Black Hot/White Hot/Pseudo Color|
|ICC Software||Module Control & Video Display|
|Standard External Interface||30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)|
|USB Expansion Board||Type-C|
|Digital Video Interface||CMOS8/USB2.0|
|Supply Voltage||3.3V±0.1V VDC|
|Typical Power Consumption||0.7W|
|Operating Temperature Range||-10°C~+50°C|
|Temperature Measurement Range||-20°C~+150°C, 0°C~550°C; Support Customization and Expansion|
|Temperature Measurement Accuracy||Greater of ±3°C or ±3% (@23℃±3℃)|
|Regional Temperature Measurement||Support Maximum, Minimum and Average Value of the Output Regional Temperature|
|SDK||Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature|
|Size (mm)||21×22.3×27.3 (With 9.1mm Lens)|
|Weight||20.8g±1.5g (With 9.1mm Lens)|
|Vibration||5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 9.1mm|
The iTL612/R thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
1.What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
3.What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
