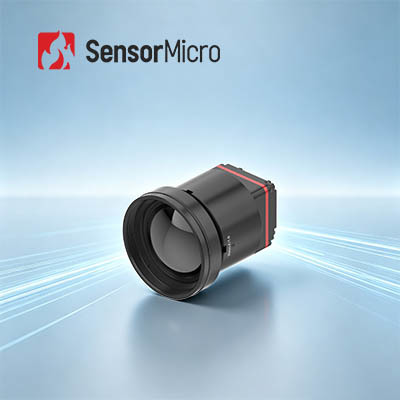

1280x1024 Resolution 8μm Pixel Pitch 30Hz Frame Rate Uncooled Thermal Imaging Module

The iTL1208 is a mass-producible OEM-ready 8μm megapixel infrared camera core with excellent SWaP performance for bulk procurement and customized secondary assembly. Standard physical specs: 22.6×22.6×34.5mm outline dimension, 35.7g total weight with standard 12mm lens, with customizable lens options for OEM projects. It features stable 1280×1024 megapixel resolution and consistent ≤30mK NETD batch performance, guaranteed for large-scale end-product assembly.

Standard universal hardware interfaces include MIPI CSI video output, RAW/YUV dual data output, and serial port/I2C control for seamless compatibility with mainstream main control boards. Suitable for OEM/ODM cooperation and bulk order delivery for security equipment manufacturers, industrial instrument factories, and public safety terminal suppliers. Our team provides full technical support for product customization and batch integration.

• Compact size of 22.6×22.6×34.5mm and a weight of 35.7g (including a 12mm lens)
• Among the highest levels of integration in its class

• 8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images
• Typical NETD ≤30mK, enabling reliable detection of subtle temperature differences

• Multiple optical lens options available to meet diverse application requirements
• Supports MIPI CSI image output interface
• RAW and YUV image data output, with control via serial port/I2C

The iTL1208 thermal imaging module can be widely used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

• Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
• Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
• Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
• Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
• Warranty: Original parts and strict process adherence to restore optimal performance.

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
