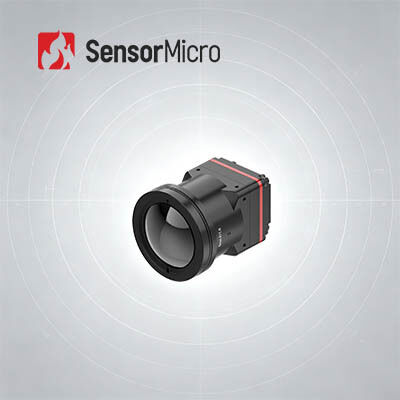

Uncooled Thermal Imaging Module with 1280x1024 Resolution 8μm Pixel Pitch and 8~14μm Spectral Range
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iTL1208 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | Pixel Pitch | 8μm |
|---|---|---|---|
| Frame Rate | 25/30Hz | Spectral Range | 8~14μm |
| Power Consumption | 1W | Typical NETD | ≤30mK |
| Highlight | Radiometric Uncooled Thermal Imaging Module,Drones Uncooled Thermal Imaging Module,Thermal Camera Core 14um |
||
Product Description
Uncooled Thermal Imaging Module 1280x1024/8μm Spectral Range 8~14μm
Crafted for next-generation miniature photoelectric detection systems, the iTL1208 flagship megapixel infrared camera core achieves groundbreaking SWaP-performance synergy. Featuring a premium 8μm large-format infrared detector chip, this exquisitely encapsulated module achieves 1280×1024 high-fidelity thermal imaging within a minimalist 22.6×22.6×34.5mm enclosure and 35.7g ultra-light payload. With an ultra-low 30mK NETD rating and self-developed intelligent image optimization algorithms, it restores full-spectrum thermal details with exceptional accuracy even in complex low-contrast environments. Optimized for portable precision photoelectric terminals and unmanned mobile platform payloads, the iTL1208 supports customized optical configuration and standard industrial bus protocol interaction, empowering high-end security, intelligent industrial inspection and public safety emergency response systems with reliable core infrared vision capabilities.
Main Features
- Extreme Lightweight Design - Compact size of 22.6×22.6×34.5mm and weight of 34.5g (including 12mm lens); among the highest levels of integration in its class
- High Sensitivity, Precise Detection - 8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images; typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
- Simplified Development, Fast Integration - Multiple optical lens options available to meet diverse application requirements; supports MIPI CSI image output interface; RAW and YUV image data output, with control via serial port/I2C
Product Specifications
| Model | iTL1208 |
|---|---|
| IR Detectors Indicators |
Sensitive Material: VOx Resolution: 1280×1024 Pixel Size: 8μm Spectral Response: 8μm ~ 14μm Typical NETD: ≤30mK |
| Image Processing |
Digital Frame Rate: 25/30Hz Start-up Time: ≤6s Digital Video: RAW/YUV Image Algorithm: NUC/3DNR/DNS/DRC/EE Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | Module Control & Video Display |
| Electrical |
Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0 Communication Interface: TTL-232/I2C Digital Video Interface: MIPI-CSI Supply Voltage: 4.5-5.5V Typical Power Consumption: 1W |
| Mechanical |
Size (including lens): • With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm) • With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm) • With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm) • With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm) • With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm) • With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm) Weight (including lens): • 85.5±4.5g (With 5mm lens) • 70.5±3.6g (With 10mm lens) • 35.7±2g (With 12mm lens) • 40.7±2.1g (With 17mm lens) • 71.0±3.6g (With 25mm lens) • 110±5.5g (With 35mm lens) |
| Environmental Adaptability |
Operating Temperature: -40℃~+70℃ Storage Temperature: -45℃~+85℃ Humidity: 5%~95%, non-condensing Vibration: 5.35grms, Random Vibration, 3-axis Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times Certification: ROHS2.0/REACH Optical Lens: Fixed Focus Athermal: 5/10/12/17/25/35mm |
Industrial Applications
The iTL1208 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.
Product Benefits
Rich Product Variety - Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance - Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability--designed to perform under a wide range of environmental challenges.
Easy Integration - Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
In which industries are focal plane array infrared detectors used?
Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.
What are the characteristics of cooled & uncooled infrared focal plane detector?
Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
