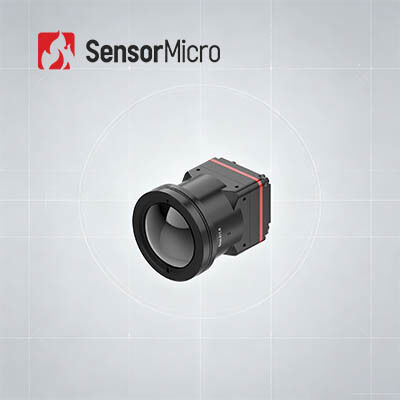

Uncooled Thermal Camera Module with 1280x1024 Resolution 8μm Pixel Pitch and 30mK NETD ApexCore Infrared Detector

  • Uncooled Thermal Camera Module with 1280x1024 Resolution 8μm Pixel Pitch and 30mK NETD ApexCore Infrared Detector
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024 Spectral Range 8~14μm
Power Consumption 1W Typical NETD ≤30mK
Frame Rate 25/30Hz Pixel Pitch 8μm
Highlight

Drone Thermal Camera Module 12um

,

Lightweight UAV Thermal Camera Module

,

UAV Uncooled Thermal Camera Core
Leave a Message
Product Description
Thermal Camera Module Uncooled 1280x1024/8μm ApexCore Infrared Detector
Product Overview
Meet the iTL1208 — your ultra-portable megapixel infrared camera core built for SWaP-constrained mobile systems. At merely 22.6×22.6×34.5 mm and 35.7g (12mm lens included), this 8μm high-resolution module balances ultimate miniaturization and top-tier thermal sensitivity with NETD down to 30mK. Delivering crisp 1280×1024 HD thermal images, it features flexible lens selection, standard MIPI CSI output, RAW/YUV data transmission, and simple I2C/serial port control. Perfect for handheld devices, mobile platforms, security surveillance, industrial inspection and rescue missions. Simplify your infrared product development with our ready-to-integrate thermal camera core.
Main Features
  • Extreme Lightweight Design - Compact size of 22.6×22.6×34.5mm and weight of 34.5g (including 12mm lens) with among the highest levels of integration in its class
  • High Sensitivity, Precise Detection - 8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images with typical NETD ≤30mK for reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration - Multiple optical lens options, MIPI CSI image output interface, RAW and YUV image data output with control via serial port/I2C
Product Specifications
Model iTL1208
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Digital Frame Rate 25/30Hz
Start-up Time ≤6s
Digital Video RAW/YUV
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software Module Control & Video Display
Standard External Interface 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface TTL-232/I2C
Digital Video Interface MIPI-CSI
Supply Voltage 4.5-5.5V
Typical Power Consumption 1W
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications
The iTL1208 thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices, and more.
Our Services
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (-273℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
