UAV and Drone Thermal Camera Module Uncooled Lightweight 640x512 12μm
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spectral Range||8~14μm||Pixel Pitch||12μm|
|Typical NETD||≤40mK||Frame Rate||30Hz|
Drone Thermal Camera Module 12um,
Lightweight UAV Thermal Camera Module,
UAV Uncooled Thermal Camera Core

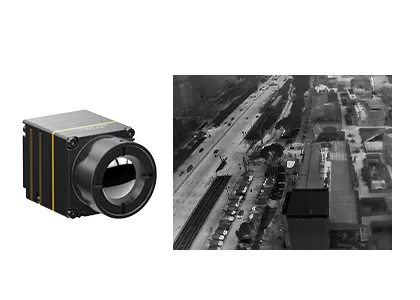

Uncooled 640x512 12μm Thermal Camera Module for UAV and Drone
The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm.
iTL612 thermal camera module features in sharp and crisp image presentation, compact size and low cost. Oriented for fully optimized SWaP, iTL612R uncooled thermal module provides a reliable solution for infrared system integration with limited space. Its compact structure has reached top level of the same specification module. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Compact & Lightweight Design
• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
• Weight: 20.8g±1.5g (with 9.1mm lens)
• Low power consumption as low as 0.7W
Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement
Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control
|IR Detector Performance|
|Sensitive Material||Vanadium Oxide|
|Image Algorithm||Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
|Image Display||Black Hot/White Hot/Pseudo Color|
|ICC Software||Module Control & Video Display|
|Standard External Interface||30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)|
|USB Expansion Board||Type-C|
|Digital Video Interface||CMOS8/USB2.0|
|Supply Voltage||3.3V±0.1V VDC|
|Typical Power Consumption||0.7W|
|Operating Temperature Range||-10°C~+50°C|
|Temperature Measurement Range||-20°C~+150°C, 0°C~550°C; Support Customization and Expansion|
|Temperature Measurement Accuracy||Greater of ±3°C or ±3% (@23℃±3℃)|
|Regional Temperature Measurement||Support Maximum, Minimum and Average Value of the Output Regional Temperature|
|SDK||Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature|
|Size (mm)||21×22.3×27.3 (With 9.1mm Lens)|
|Weight||20.8g±1.5g (With 9.1mm Lens)|
|Vibration||5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 9.1mm|
The iTL612/R thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
1.What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
2. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
3.What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
