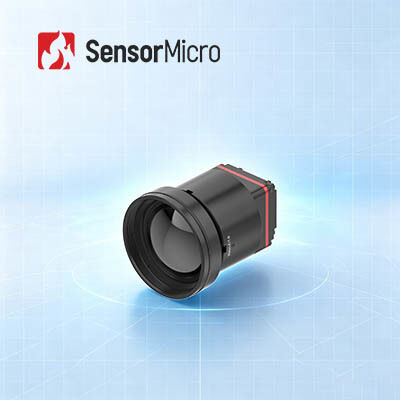

Uncooled LWIR Thermal Imaging Module with 1280x1024 Resolution 8μm Pixel Pitch and 30mK NETD for Photovoltaic Inspection

  • Uncooled LWIR Thermal Imaging Module with 1280x1024 Resolution 8μm Pixel Pitch and 30mK NETD for Photovoltaic Inspection
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024 Power Consumption 1W
Spectral Range 8~14μm Pixel Pitch 8μm
Typical NETD ≤30mk Frame Rate 25/30Hz
Highlight

Uncooled LWIR Thermal Imaging Module

,

UAV Payloads Thermal Imaging Module

,

640x512 Uncooled Thermal Camera Core
Leave a Message
Product Description
Uncooled LWIR Thermal Imaging Module 1280x1024/8μm for Photovoltaic Inspection
Product Overview
Looking for a powerful megapixel thermal camera core for your devices? Meet the iTL1208 thermal camera core. We compressed full 1280×1024 8μm high-resolution thermal performance into a compact 22.6×22.6×34.5mm module that only weighs 35.7 grams with a 12mm lens. Boasting 30mK ultra-low NETD, this infrared camera module picks up the faintest temperature differences the naked eye cannot detect. Plug and integrate easily via MIPI CSI, with both RAW and YUV output and simple I2C/serial port control. Whether you build firefighting cameras, handheld inspection tools or mobile surveillance devices, the iTL1208 thermal imaging module is your perfect lightweight thermal vision solution.
Main Features
  • Extreme Lightweight Design
    Compact size of 22.6×22.6×34.5mm and a weight of 35.7g (including a 12mm lens)
    Among the highest levels of integration in its class
  • High Sensitivity, Precise Detection
    8μm ultra-small pixel size with 1280×1024 resolution, delivering fine detail and clear images
    Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration
    Multiple optical lens options available to meet diverse application requirements
    Supports MIPI CSI image output interface
    RAW and YUV image data output, with control via serial port/I2C
Product Specifications
Model iTL1208
IR Detectors Indicators Sensitive Material: VOx
Resolution: 1280×1024
Pixel Size: 8μm
Spectral Response: 8μm ~ 14μm
Typical NETD: ≤30mK
Image Processing Digital Frame Rate: 25/30Hz
Start-up Time: ≤6s
Digital Video: RAW/YUV
Image Algorithm: NUC/3DNR/DNS/DRC/EE
Image Display: 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software PC Software: Module Control & Video Display
Electrical Standard External Interface: 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface: TTL-232/I2C
Digital Video Interface: MIPI-CSI
Supply Voltage: 4.5-5.5V
Typical Power Consumption: 1W
Mechanical Size (including lens):
With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm)
With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm)
With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm)
With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm)
With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm)
With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm)
Weight (including lens):
85.5±4.5g (With 5mm Lens)
70.5±3.6g (With 10mm Lens)
35.7±2g (With 12mm Lens)
40.7±2.1g (With 17mm Lens)
71.0±3.6g (With 25mm Lens)
110±5.5g (With 35mm Lens)
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃~+85℃
Humidity: 5%~95%, non-condensing
Vibration: 5.35grms, Random Vibration, 3-axis
Impact: Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification: ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications
The iTL1208 thermal imaging module can be widely used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.
Our Advantages
  • Rich Product Variety
    Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
  • Outstanding Performance
    Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability--designed to perform under a wide range of environmental challenges.
  • Easy Integration
    Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What is the advantage of infrared thermal imaging?
  • See through total darkness
  • Identification under camouflage
  • Long range detection
  • Heat distribution detection
  • Non-contact temperature measurement
  • Occupation awareness
  • And so on
What is thermal sensitivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.
What is the difference between wafer level package, ceramic package and metal package?
Uncooled infrared detectors are currently divided into metal packaging, ceramic packaging, and wafer-level packaging. Metal packaging is the earliest and the best among the three main packaging forms; wafer-level packaging is suitable for mass production; and the ceramic packaging is more favored by the dedicated market for civilian products.
