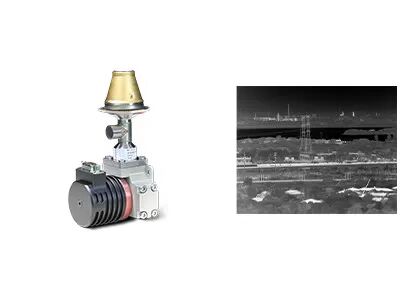

1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly

I'm Online Chat Now

1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly

1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly
1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly

Large Image :  1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C1212M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: ≤20mK (F2/F4)
Spectral Range: 3.7~4.8μm MW Size: 149x58.5x71mm
High Light:

Dewar Cooler Assembly Cooled Infrared Detector

,

Integrated Cooled Infrared Detector

,

Cooled Ir Detectors 1280x1024

Cooled 1280x1024 12μm Infrared Detector with Integrated Dewar Cooler Assembly

C1212M MWIR by GST Infrared



High Definition Large Array 1280x1024 / 12μm MCT Cooled Infrared Detector for Clear Thermal Imaging



Product Description



C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detectors developed by Global Sensor Technology (GST).



C1212M cooled infrared detector has high resolution, high performance and high reliability. It offers four times as many pixels in the same active image area as conventional 640x512 products. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission. C1212M is an ideal choice for applications that require superior long range performance and image details recognition.



 Main Features



Outstanding Performance
• 1280×1024 resolution for wider FOV and longer distance
• 12μm pixel size for better spatial resolution



Sharp & Clear Image
• High thermal sensitivity
• Good uniformity, effective pixel rate>99.5%



Designed for Specific Applications
• F number can be customized
• Guarantee continuous supply



Product Specifications



Model C1212M MW
Material MCT
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR)
Dynamic Range ITR Mode≥80dB
IWR Mode≥76dB
Number of Output 4 or 8; Up to 20Mpixel/s per Output
NETD ≤20mK (F2/F4)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058F
Steady Power Consumption ≤7W
Max Power Consumption ≤17W
Power Supply 24V DC
Cooling Time ≤6min
Weight ≤600g
Dimension (mm) 149x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly 0



Company Profile


1280x1024 12μm Cooled Infrared Detector with Integrated Dewar Cooler Assembly 1


FAQs



1. What is thermal sensitivity?

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.



2. What is MCT/HgCdTe detector?

MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.



3. What is T2SL detector?

T2SL refers to Type-II Superlattice, which is an artificial material with alternating growth periodic heterojunction at nanometer size. It has high uniformity and superior optical property, such as large electron effective mass,large absorption coefficient and high quantum efficiency. Compared with MCT infrared detector, the T2SL infrared detector has good material uniformity, low cost, and similar performance to MCT infrared detector in medium and long wave band, but has great advantages in very long wave band.
