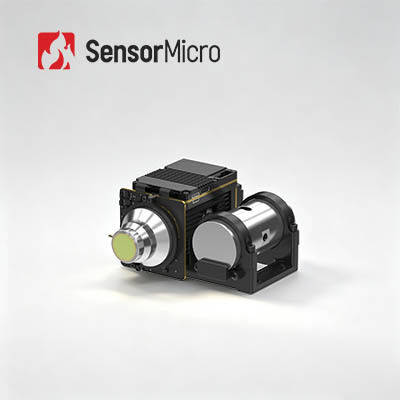

Cooled HOT Thermal Camera Core with 1280x1024 Resolution and 10μm Pixel Pitch for Long Range Detection
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC1210HMF |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| High Definition | 1280x1024 | Pixel Pitch | 10μm |
|---|---|---|---|
| Frame Rate | 50Hz | NETD | 20mK(F2); 25mK(F4) |
| Size | 101×101×54mm | Spectral Range | 3.7~4.8μm MW |
| Highlight | Cooled Thermal Camera Core 1280x1024,RoHS Cooled Thermal Camera Core,RS422 Thermal Camera Core |
||
Product Description
Cooled HOT Thermal Camera Core 1280x1024/10μm for Long Range Detection
Product Overview
The GAVIN GC1210HMF infrared camera core features a 1280×1024/10μm High Operating Temperature (HOT) mid-wave infrared (MWIR) cooled detector. Compared to traditional 640×512/15μm MWIR solutions, it offers one-third smaller pixel pitch and four times higher resolution array, which dramatically enhances spatial resolution and image clarity.
Combined with advanced image processing algorithms, it delivers high-definition, finely detailed infrared imagery at megapixel resolution. Powered by HOT technology, the GAVIN GC1210HMF infrared camera core significantly enhances SWaP performance by offering a compact size, lightweight design, and low power consumption, making it an ideal solution for long-range infrared systems with strict space and integration requirements.
With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 10µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission. It is ideal choice for the integrator to design their own systems.
Main Features
- Mega Pixel Images - 1280×1024 high definition for wider FOV and longer distance with 10μm pixel size for better spatial resolution
- Sharp Clear Quality - Supports high-temperature operation at 150K, with cooling time ≤4min and high sensitivity NETD 20mK
- Fast Integration - Supports Cameralink/USB3.0/GigE/HDMI/SDI/MIPI/fiber optic video outputs with flexible RAW/YUV image data output
Product Specifications
| Model | GAVIN GC1210HMF HOT MWIR Cooled Infrared Camera Core |
|---|---|
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤8W |
| Cooling Time(23℃) | ≤4min |
| Size | 101×101×54 mm |
| Weight | ≤570 g |
| Operating Temperature | -40℃~+71℃ |
| Lens Options | Fixed focus: 15mm/F2 Continuous zoom: 15~300mm/F4, 30~500mm/F4 |
Industrial Applications
The GAVIN GC1210HMF thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
Our Strengths
- Diversified Product Portfolio
- Deep Technical Expertise
- Rigorous Reliability Validation Ensures Quality Assurance
- Focused on Innovation and Practical Implementation in Infrared Sensing
- Professional Technical Support and Joint Development Services
Frequently Asked Questions
What is thermal sensitivity?
Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.
In which industries can the infrared detectors/thermal camera cores be used?
Our infrared detectors / thermal camera cores are widely used in many industries such as: Thermography (Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention), Security & Monitoring (Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety), Firefighting & Rescue (Forest Fire Prevention, Fire Prevention, Search & Rescue), Personal Vision (Outdoor Leisure, Animal Observation, Enforcement Patrol), ADAS (Autonomous Driving, Advanced Driver Assistant System, Special Vehicles), AIoT (Smart Home, Intelligent Hardware, Smart Care, Robots), and others (Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research).
