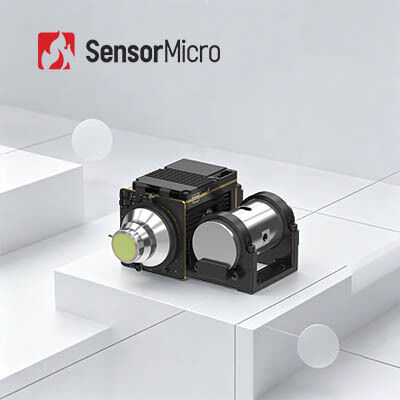

Cooled Thermal Module Infrared Camera Core 1280x1024 10μm High Thermal Sensitivity MWIR Cooled Detector

The GAVIN GC1210HMF infrared camera core features a 1280×1024/10μm High Operating Temperature (HOT) mid-wave infrared (MWIR) cooled detector. Compared to traditional 640×512/15μm MWIR solutions, it offers one-third smaller pixel pitch and four times higher resolution array, which dramatically enhances spatial resolution and image clarity. Combined with advanced image processing algorithms, it delivers high-definition, finely detailed infrared imagery at megapixel resolution.

Powered by HOT technology, the GAVIN GC1210HMF infrared camera core significantly enhances SWaP performance by offering a compact size, lightweight design, and low power consumption, making it an ideal solution for long-range infrared systems with strict space and integration requirements.

• Megapixel Imaging, Superior Quality
  • Developed based on a 1280×1024/10μm HOT MWIR cooled infrared detector, delivering high-definition and delicate image quality
  • Integrated with advanced image processing algorithms such as DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
• HOT Technology for Ultimate SWaP Optimization
  • Supports high-temperature operation at 150K, with a cooling time ≤4min
  • Compact dimensions down to 101×101×54mm, lightweight at just 570g
• Rich Interfaces, Easy Integration
  • Supports Cameralink/USB3.0/GigE/HDMI/SDI/MIPI/fiber optic video outputs
  • Flexible RAW/YUV image data output

• NDT (Non-Destructive Testing)
• Environmental Monitoring
• Long-Range Surveillance
• Scientific Research

• Deep Technical Expertise - Years of experience in infrared sensor technology research, development, and application with capabilities across chip design, wafer fabrication, packaging, testing, and system integration.
• Focused on Innovation - Committed to driving technological breakthroughs in thermal imaging, pushing boundaries in NETD, SWaP, and operating temperature.
• Diversified Product Portfolio - Comprehensive range of infrared detection components including both cooled and uncooled solutions for various industries.
• Rigorous Reliability Validation - Robust quality management system with multiple testing procedures to ensure long-term stability and reliability.
• Professional Technical Support - Engineering team works closely with customers to accelerate system integration and shorten time-to-market.

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
