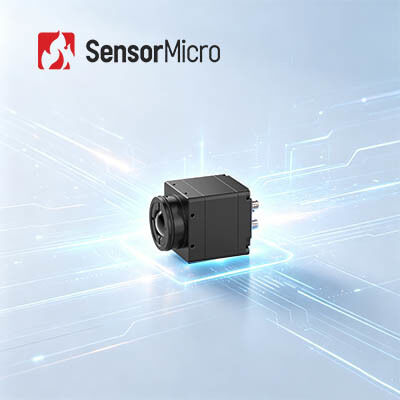

Ceramic Package Uncooled LWIR Thermal Camera Core with 384x288 Resolution and 12μm Pixel Pitch

  • Ceramic Package Uncooled LWIR Thermal Camera Core with 384x288 Resolution and 12μm Pixel Pitch
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE412
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 384x288 Pixel Pitch 12μm
Power Consumption 0.8W@50Hz@23±3℃ Spectral Range 8~14μm
NETD ≤30mK Frame Rate 50Hz
Highlight

Ceramic Package Thermal Camera Core

,

12uM Thermal Camera Core

,

Uncooled LWIR Thermal Core
Leave a Message
Product Description
Ceramic Package Uncooled LWIR Thermal Camera Core 384x288 12μm
Ceramic Package Uncooled LWIR 384x288 12 μm Thermal Camera Core
The iSE412 thermal camera module utilizes a 384×288/12μm ceramic package infrared detector. Ceramic packaging represents the most advanced packaging technology currently available, enabling significant reductions in detector size, weight, and power consumption.
By integrating ceramic packaging infrared detector technology, the iSE412 thermal module delivers exceptionally clear and sharp images. The product incorporates upgraded super-resolution algorithms and comprehensive interactive functions including picture-in-picture display and customizable OSD, along with optimized power-saving sleep mode and one-click calibration functionality. With its ultra-compact form factor and minimal weight, it achieves breakthroughs in miniaturization and portability while maintaining imaging stability. Highly compatible with multiple optical and electronic accessories, it supports customized development for emerging applications in intelligent machine vision, smart security, firefighting equipment, and consumer thermal electronics.
Main Features
Shutterless Design for Smoother Viewing
  • No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
  • Silent operation ensures discreet use without mechanical noise
Compact and Lightweight, Flexible for Integration
  • Total system dimensions as small as 25.4×25.4×22.7 mm, bare core weight ≤26±1.5g
  • Space-saving structural design allows flexible system layout and integration
Feature-Rich, Seamless Integration
  • Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
  • Compatible with multiple optical lenses and extension components for easy secondary development and system customization
Product Specifications
Model
iSE412
IR Detectors Indicators
Sensitive Material
VOx
Resolution
384×288
Pixel Size
12μm
Spectral Response
8μm ~ 14μm
Typical NETD
≤30mK
Image Processing
Effective Pixels
384×288
Digital Frame Rate
50Hz
Start-up Time
6s
Digital Video
YUV420/YUV422/RGB888/RAW
Image Algorithm
NUC/DRC/DNS/DDE/SFFC
Shutterless
Supported
Image Display
10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction
Horizontal/Vertical/Diagonal
Digital Zoom
1x/2x/4x/8x
Image Brightness
Auto/Manual
Image Contrast
Auto/Manual
Compensation Mode
Manual
Electrical
Standard External Interface
50pin: BP040SB-50-0114-B-R0
Communication Interface
TTL-232/USB2.0
Digital Video Interface
DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE
Extension Components
USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage
2.7V~5.3V
Typical Power Consumption
0.8W@50Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm)
25.4×25.4×22.7
φ36×24.3
Bare Core Weight(g)
26±1.5
28±1.5
Optical Lens
Fixed Focus Athermal: 4.9/9.1/13/19mm
Fixed Focus Athermal: 25mm/35mm
Shutter Components
Optional
Vibration
5.35g, Random Vibration, 3-axis
Impact
Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
1500g@0.4ms
Protection Level
IP67(Front Lens)
Environmental Adaptability
Operating Temperature
-40℃~+70℃
Storage Temperature
-45℃~+85℃
Humidity
5%~95%, non-condensing
Certification
ROHS2.0/REACH
Industrial Applications
The iSE412 thermal imaging module is applied in the field of Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.
Product Advantages
Diverse Product Portfolio
A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety
Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance
Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
Easy Integration
Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
GST infrared detectors / thermal camera cores are widely used in many industries such as:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
