LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging

I'm Online Chat Now

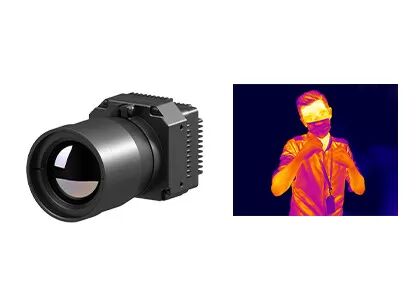

LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging

LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging
LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging

Large Image :  LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm Spectral Range: 8~14μm
NETD: <30mK Frame Rate: 25Hz
Size: 56x56x40.2mm Weight: ≤220g
High Light:

LWIR Uncooled Infrared Camera Core

,

Infrared Camera Core 1280x1024

,

Thermal Camera Core 12uM

LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Ultra Clear Thermal Imaging

PLUG1212 Infrared Camera Module



Large Array 1280x1024 / 12μm Uncooled FPA Thermal Imaging Camera Core for Security & Monitoring



Product Description



PLUG1212 uncooled thermal camera core is developed by Global Sensor Technology (GST). Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules.



The PLUG1212 thermal module offers thermal images up to 1280x1024 pixels and shows you the smallest of details. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.



PLUG1212 infrared thermal core is applied in a wide range of areas and its visual information solutions cover day, night, low visibility and all weather conditions.



Global Sensor technology is a leading infrared detector supplier and OEM camera module manufacturer. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.



Main Features



Ultra-clear Presentation
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution



Sharp Image & Rich Details
• High sensitivity, typical NETD<50mK
• Powerful image process algorithm

High Adaptability
• Adapt to all kinds of harsh environment like rain, snow, fog etc.

Easy Integration
• Various image output interface: DVP/LVDS
• Standard optical interface that is compatible with full series of lenses



Product Specifications



Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLUG1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging 0

IR Detector Solution



LWIR Uncooled Infrared Camera Core 1280x1024 12μM With Clear Thermal Imaging 1



FAQs



1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.

2. How to select right pseudo color for thermal imaging?
- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.

3. How to choose a suitable infrared thermal camera lens?
- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
