Small Size Long Wave Thermal Imaging Core 400x300 COIN417G2
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 384x288 /17μm | NETD | ≤50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Size | 21x22.3x15.6mm (With 9.1mm Lens) |
| Temperature Range | -20℃~+550℃ (Customizable) | Temperature Accuracy | ±3℃ Or ±3% |
| High Light | Thermal Imaging Core 400x300,VOx Thermal Imaging Core,384x288 Thermal Camera Core |
||
Product Description

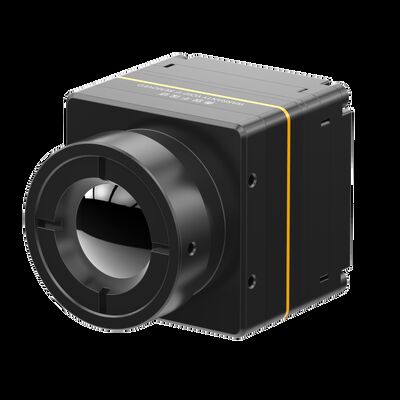

Small Size Long Wave Thermal Imaging Core 400x300 COIN417G2
Thermal Camera Core
Uncooled FPA Thermal Imaging Camera Core with 400x300 Infrared Detector
Product Description
COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by Global Sensor Technology (GST). It integrates 400x300@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm such as Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), 2D Noise Reduction (DNS), Dynamic Range Compression (DRC), Edge Enhancement (EE).
The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
The COIN417G2 thermal module be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, UAVs Payload, ADAS etc.
Global Sensor Technology is a supplier of cooled uncooled infrared detectors and infrared thermal imaging modules. These infrared FPA detectors and thermal camera cores are partial components of infrared thermal cameras, which are specially used for the secondary development requirements of the customers.
Main Features
Excellent Image Performance
• Powerful image process algorithm: NUC/3DNR/DNS/DRC/EE
• Present sharper and clearer image quality
Temperature Measurement
• With range of 20℃～150℃, 0~550℃
• Support customization & expansion
Higher Efficiency
• With start-up time at 3s and power consumption as low as 0.7w
Faster Integration
• Support DVP/LVDS image output interface, RAW/YUV digital video output, serial port control
Product Specifications
| Model | COIN417G2/R |
| IR Detector Performance | |
| Material | VOx |
| Resolution | 400×300 |
| Pixel Pitch | 17μm |
| Spectral Range | 8μm ~14μm |
| Typical NETD | ≤40mK |
| Image Processing | |
| Frame Rate | 50Hz/30Hz/25Hz |
| Start-up Time | 3s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Reduction (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Digital Zoom | 1X~8X Continuous Zoom, 1/8 Step Size (YUV Output) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| PC Software | |
| ICC Software | Module Control and Video Display |
| Electrical Specification | |
| Standard External Interface | 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male) |
| USB Extension Board | Type-C |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | CMOS8/CMOS16/LVDS/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.7W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃; Support Customization and Expansion |
| Temperature Measurement Accuracy | Greater of ±3℃ or ±3% |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
| SDK | Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 25.4×25.4×29.3(With 9.1mm Lens) 25.4×25.4×41.2(With 13mm Lens) 25.4×25.4×40(With 19mm Lens) |
| Weight | 29g±3g(With 9.1mm Lens) 42g±3g(With 13mm Lens) 44g±3g(With 19mm Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3-axis |
| Shock | Half Sine Wave, 40g/11ms, 3-axis, 6-direction |
| Certificates | ROHS2.0/REACH |
| Optics | |
| Optional Lens | Fixed Athermal: 9.1mm/13mm/19mm |
| Protection Level | IP67 |
