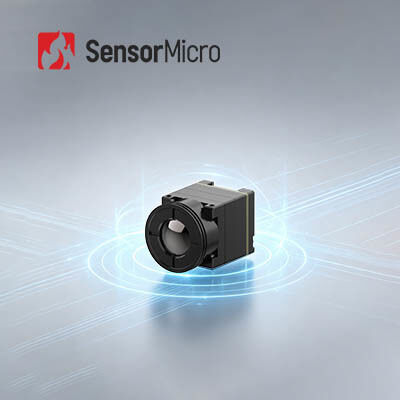

640x512 Resolution Thermal Imaging Module with Ultra-Low Power Consumption and Compact Size for Portable Devices

  • 640x512 Resolution Thermal Imaging Module with Ultra-Low Power Consumption and Compact Size for Portable Devices
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number COIN612R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 640x512 / 12μm Temperature Accuracy ±3℃ Or ±3%
Typical NETD ≤40mK Temperature Range -20℃~+550℃ (Customizable)
Spectral Range 8~14μm Size 25.4×25.4×27.4 (With 9.1mm Lens)
Highlight

650x512 Thermal Imaging Module

,

UAV Payloads Thermal Imaging Module

,

Integrated Drone Thermal Camera
Leave a Message
Product Description
650x512 Thermal Imaging Module Integrated Into Portable Night Vision Devices
Product Overview
Engineered for portable thermal imaging devices, the iTL612 PLUS infrared camera core excels in extreme SWaP optimization. Featuring an ultra-miniature size of 17.3×17.3×24.2mm and an ultra-light weight of 13.7±0.5g (with standard 9.1mm lens), it minimizes the structural load of end devices. The industry-leading ultra-low power consumption of 0.65W effectively reduces equipment energy consumption, supporting long-duration operation. Despite its compact size, it adopts ApexCore 640×512/12μm high-precision detector and upgraded imaging algorithms, retaining ≤25mK high thermal sensitivity and ultra-clear imaging quality. Its highly integrated design and rich compatibility make it the ideal core component for lightweight thermal imaging systems, portable night vision devices and miniaturized detection equipment.
Main Features
Unmatched Lightness and Minimal Load
  • Ultra-Miniature Size: 17.3×17.3×24.2 mm (including 9.1 mm lens)
  • Ultra-Lightweight: 13.7±0.5g (including 9.1 mm lens)
  • Ultra-Low Power Consumption: As low as 0.65W
Powered by ApexCore, More Sensitive and Clearer
  • Developed based on the next-generation ApexCore infrared detector, with thermal sensitivity as low as ≤25 mK
  • Enhanced with next-generation image processing algorithms for clearer imaging
Easy Development & Seamless Integration
  • Multiple lens options available to suit various application scenarios
  • Supports multiple image output interfaces: DVP8, LVDS, MIPI, USB 2.0, and BT.656
  • RAW/YUV/Matrix-TEMP data output with serial port control
Product Specifications
Model iTL612PLUS
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤25mK
Image Processing
Digital Frame Rate 25/30Hz/50Hz
Start-up Time ≤6s
Digital Video RAW/YUV/Matrix-TEMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 (Black Hot/White Hot/Pseudo Color)
Electrical
Standard External Interface 30Pin_HRS interface: DF40C-30DP-0.4V(51)
MIPI External Interface 34Pin_Panasonic Connector Interface: AXE634124
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/LVDS/MIPI/USB2.0/BT.656
Supply Voltage 4.2-5.5V
Typical Power Consumption 0.65W
Mechanical
Size (including lens) 17.3×17.3×24.2 (9.1mm lens)
17.3×17.3×30.2 (13mm lens)
17.3×17.3×38 (24mm lens)
17.3×17.3×54 (45mm lens)
Weight (including lens) 13.7±0.5g (9.1mm lens)
17.9±0.5g (13mm lens)
27.3±0.5g (24mm lens)
51±0.5g (45mm lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 9.1/13/24/45mm
Industrial Applications
The iTL612 PLUS thermal camera core can be used in the field of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices, and more.
Integration Solutions
A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety
Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance
Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
Easy Integration
Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Our Advantages
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2. What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive test
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
3. What is a thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
