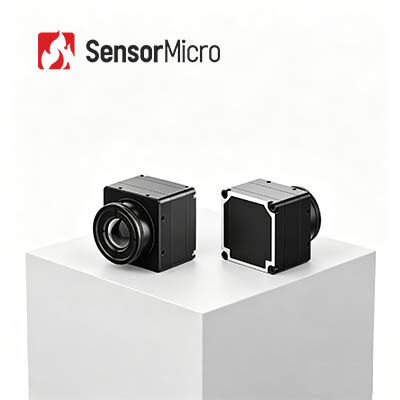

640x512 Resolution 12μm Pixel Size Uncooled Thermal Camera Core with ≤25mK NETD
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN612G2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 12μm | Typical NETD | ≤25mK/F1.0/25℃ |
|---|---|---|---|
| Spectral Range | 8~14μm | Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W | Bare Core Weight | 15±1g |
| Highlight | 12um Thermal Imaging Camera Module,Payloads Thermal Imaging Camera Module,Payloads Thermal Camera Core |
||
Product Description
Uncooled 640x512 / 12μm Thermal Imaging Camera Module
Product Overview
Introducing the COIN612G2 high-value uncooled thermal camera core, engineered for system integrators across industrial vision, night surveillance, outdoor monitoring and AIoT verticals. At its heart lies a 640×512/12μm ApexCore wafer-scale infrared detector integrated with sophisticated signal processing circuits and proprietary imaging algorithms, reaching NETD ≤25mK for precise low-temperature-difference detection.
The module supports all mainstream serial communication standards alongside four mainstream digital video interfaces (USB 2.0/DVP/LVDS/BT.656), outputting RAW or YUV thermal data under serial port regulation, with a complete optical lens ecosystem to match project-specific needs. Its standout compact structure (25.4×25.4×15.7mm, 15±1g, ≤0.65W power) and simplified secondary development pipeline accelerate product launch cycles for OEM partners, striking a perfect balance between comprehensive imaging functions and cost competitiveness.
Main Features
- Premium imaging performance at controlled cost via ApexCore wafer-level FPA and optimized algorithms
- Micro-sized, low-power lightweight chassis for portable and embedded device integration
- Versatile configurations and abundant lens choices to cut integration R&D costs and time-to-market
Product Specifications
| Model | COIN612G2 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤25mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Mechanical | |
| Bare Core Size(mm) | 25.4×25.4×15.7 |
| Bare Core Weight(g) | 15±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm/50mm/70mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN612G2 thermal camera module can be used in the field of Security Monitoring, Industrial Vision, Outdoor Observation, Firefighting & Rescue, ADAS, Machine Vision etc.
About SensorMicro
As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.
Frequently Asked Questions
What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.
What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.
What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
