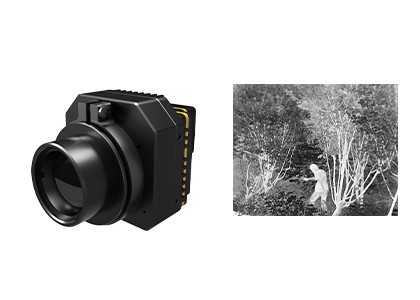

Uncooled Infrared Thermal Security Camera Module with Multiple Lenses
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | PLUG612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Type | Uncooled Infrared Module | Typical Power Consumption | ＜1.2W |
|---|---|---|---|
| NETD | ＜30mK | Frame Rate | 9Hz/25Hz/30Hz/50Hz/60Hz |
| Resolution | 640x512 / 12μm | Weight | ≤85g |
| Highlight | 85g Thermal Security Camera,Multiple Thermal Security Camera Module,1.2W Thermal Security Camera Module |
||
Product Description
Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses
Product Description
PLUG612 thermal module is specially designed for the security and surveillance monitoring camera. By integrating this module, the security camera could sense an object’s heat radiation, capture images 24/7, regardless of environmental factors such as darkness, lowlight, strong backlight, etc.
Consisted of 640x512 / 12µm uncooled thermal sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG612 thermal imaging core provides clear image and superior performance.
We are a leading infrared detector supplier and OEM camera module manufacturer. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.
Main Features
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
Product Specifications
| Model | PLUG612 |
| IR Detector Performance | |
| Resolution | 640x512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| NETD | <30mk |
| Image Processing | |
| Frame Rate | 9Hz/25Hz/30Hz/50Hz/60Hz |
| Start-up Time | <10s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Extension Component | USB/Camerlink |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Typical Power Consumption | <1.2W |
| Physical Characteristics | |
| Dimension (mm) | 44.5x44.5x36.6 |
| Weight | ≤85g |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 13mm/19mm/24mm |
Industrial Applications
The PLUG612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.
Customized Service
Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
FAQs
1. In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro thermal camera modules are widely used in many industries such as:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
