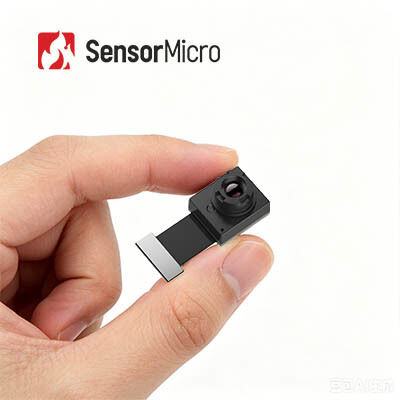

Uncooled LWIR Thermal Imaging Camera Module 256x192 Resolution 12μm Pixel Pitch for Surveillance Security

  • Uncooled LWIR Thermal Imaging Camera Module 256x192 Resolution 12μm Pixel Pitch for Surveillance Security
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number TIMO212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 256x192 Temperature Measurement Range -20℃~+550℃
Spectral Range 8~14μm Pixel Pitch 12μm
Storage Temperature -45℃~+85℃ Frame Rate Greater Of ±2℃ / ±2%
Highlight

LWIR Mini Camera Module

,

Mini Camera Module 256x192
Leave a Message
Product Description
Uncooled LWIR Mini Thermal Imaging Camera Module 256x192 for Surveillance Camera
Product Overview

The TIMO212 uncooled IR imaging module is a radiometric-capable thermal camera core featuring infrared non-contact temperature measurement functionality. It incorporates an exceptionally small 256×192/12μm wafer level package (WLP) infrared detector that captures long-wave infrared (LWIR) spectrum ranging from 8 to 14μm.

With fully optimized SWaP-C (Size, Weight, Power, and Cost), the TIMO256 thermal camera module offers compact dimensions, low power consumption, and competitive pricing, making it ideal for integration into thermal security cameras requiring wide-angle and close-range temperature measurement in security and monitoring applications.

Main Features
  • Ultra-Miniature Module with Ultimate SWaP-C Optimization
    • Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
    • The smallest infrared thermal module enabling basic thermal imaging with maximum cost efficiency
    • Compact size, lightweight, and low power consumption ideal for miniature device integration
  • Flexible Optic Options, Accurate Temperature Measurement
    • Multiple lens options including wide-angle and telephoto to meet diverse application needs
    • High-precision temperature measurement with accuracy up to ±2°C
    • Supports both regional and full-frame temperature monitoring
  • Easy Integration, Fast Development
    • Supports DVP image interface, compatible with various embedded platforms
    • Compliant with RoHS 2.0 environmental standards
Product Specifications
Model TIMO212
Resolution 256×192
Pixel Size 12μm
Spectral Response 8-14μm
Focus Mode Focus Free
Lens (HFOV/FL) 17.5°/10mm | 25°/7mm | 56°/3.2mm | 90°/2.1mm
Weight (g) 5.1±0.4 | 4.4±0.4 | 2±0.2 | 4.8±0.4
Size (mm, without FPC) 16×14×18 | 16×14×14.6 | 14×12×9.8 | 16×14×15.6
Number of PINs 40PIN
Output Data 14bit Raw
Frame Rate Thermography: 25Hz, Imaging: 50Hz
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~+60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification RoHS 2.0 / Reach
Industrial Applications
  • Smart Security
  • AloT (AI + IoT)
  • Night Observation
  • Instruments and Meters
  • Machine Vision
Our Advantages
  • Deep Technical Expertise: Years of experience in infrared sensor technology research, development, and application with strong capabilities across chip design, wafer fabrication, packaging, testing, and system integration.
  • Focused on Innovation: Commitment to technological breakthroughs in thermal imaging, pushing boundaries in NETD, SWaP, and operating temperature across security, industrial monitoring, and intelligent systems.
  • Diversified Product Portfolio: Comprehensive range of infrared detection components—both cooled and uncooled—providing tailored solutions for various industries.
  • Rigorous Reliability Validation: Robust quality management system with multiple testing procedures throughout production to ensure long-term stability and reliability.
  • Professional Technical Support: Engineering team works closely with customers to accelerate system integration, improve efficiency, and shorten time-to-market.
Frequently Asked Questions
1. What are the advantages of thermal imaging in the field of security and monitoring?
  • Larger field of view and night vision distance of tens of kilometers
  • Detect hidden fire in advance and identify fire danger earlier according to abnormal heat
  • Receive passive infrared radiation from targets without additional light sources
  • Work normally in harsh environments including smoke, haze, rain & snow, glare, and strong light
  • Accurately distinguish humans or animals through thermal distribution, detect camouflage in woods and other complex environments, and reduce false alarm rates
