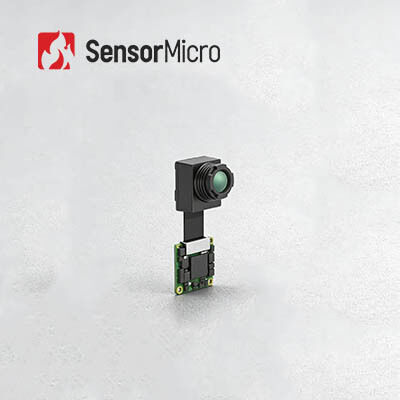

Mini 256x192 Resolution 12μm Pixel Size Uncooled FPA Thermal Camera Core with Thermography Function

The Mini212G2 uncooled infrared miniature module integrates a 256x192/12μm wafer level package (WLP) uncooled VOx infrared detector and high-performance signal processing circuit. This lightweight thermal imaging module features an optional thermographic function with temperature measurement range from -20℃ to 550℃ for industrial applications.

Built on SensorMicro's self-developed TIMO212 infrared module, this solution includes an infrared ISP processing board that enables direct output of temperature matrices and thermal images, significantly reducing development workload. With compact size, low power consumption, and cost efficiency, it supports multiple field-of-view configurations and integrates universal control interfaces for broad industrial applicability.

• Miniature Module with Direct Thermal Imaging Output - Equipped with self-developed 256×192/12μm wafer-level infrared detector for significant cost advantages
• Ultra-Compact Design - Only 17×17mm (PCBA) in size, weighing as low as 4g - ideal for space-constrained applications
• Integrated Processing - ISP processing board and next-gen image algorithms deliver clear thermal images directly
• Precise Detection - High-precision temperature measurement with accuracy up to ±2℃; supports spot, area, and full-frame measurement
• Flexible Configuration - Multiple field-of-view lens options available to meet various observation requirements
• Rich Interfaces - USB2.0 / MIPI / DVP / BT.656 / LVDS and other digital video output interfaces
• Industry Standard Compatibility - Fully compatible with industry-standard interfaces

This product is designed for applications in AIoT, Machine Vision, Industrial Vision, Security Monitoring, and Night Observation:

• AIoT - Integration into compact AIoT devices including smart home appliances, wearable devices, and intelligent environmental monitors
• Industrial Vision - Real-time monitoring of industrial equipment, laser processing and welding scenarios, semiconductor detection
• Security Monitoring - Detection of illegal intruders and triggering real-time alarms

• Diverse Formats - Wide range including infrared detectors, camera cores, and modules to meet various integration requirements
• Rich Variety - Multiple array resolutions, pixel sizes, wavebands, and lens options for greater application flexibility
• Outstanding Performance - Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability under environmental challenges
• Easy Integration - Multiple interface options for straightforward integration and rapid development across application fields
