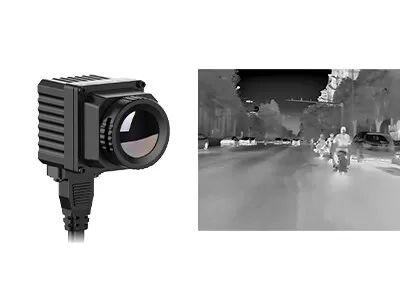

Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission

I'm Online Chat Now

Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission

Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission
Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission

Large Image :  Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: N-driver 384
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288/17μm NETD: <50mK
Spectral Range: 8~14μm Field Of View: 37°x28°
High Light:

Weather Resistant Vehicle Mounted Thermal Camera

,

GST Vehicle Mounted Thermal Camera

Brief Introduction


N-Driver 384 Vehicle Mounted Night Vision Infrared Camera with 384x288 / 17μm Resolution



Product Description

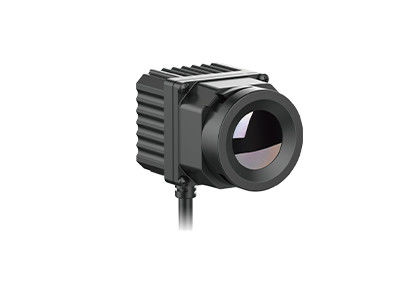

N-Driver384 is one of the N-Driver series vehicle-mounted infrared modules developed by Global Sensor Technology (GST). It integrates 384x288@17μm infrared detector and can be used to enhance driver's visual capability in harsh environment such as total darkness, rain, snow, fog, dust etc.



With N-Driver384 automotive night vision thermal camera, drivers can see clear image 300 meters away beyond the reach of vehicles' headlights. It is also effective to eliminate the interference of high beams from oncoming vehicles, increasing drivers' perception towards the surrounding environment and seeing distance in darkness or bad weather so that the safety of drivers, passengers, pedestrians and vehicles can be guaranteed.



N-Driver384 has a broad application prospect in the fields of automatic driving, vehicle assisted driving (ADAS) and special vehicle applications.



Main Features



- Resolution: 384x288

- Pixel Pitch: 17μm

- NETD<50mk

- A Great Distance of View

- All-weather Application

- High Speed Data Transmission

- High Reliability & Stability



Product Specifications



Model N-Driver 384
IR Detector Performance
Resolution 384x288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <50mk
Image Display Performance
Focal Length 9.7mm
Field of View 37°×28°
Video Output Format CVBS
Output Image Frame Rate & Resolution PAL 768x576@25Hz
System Features
Start-up Time ≤8s (Room Temperature)
Heater When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off the Heating by Itself
Compensation Algorithm Automatic Shutter Compensation
Image Algorithm Automatic Brightness Contrast/Image Enhancement
Communication Interface RS232, Baud Rate: 115200bps/CAN Communication, Speed 500kbps
Pedestrian/Vehicle Detection /
Electrical Features
Supply Voltage DC9V~32V
Overall Power Consumption ≤3.5W@24V Power Supply, Window Heating is off
≤9W@24V Power Supply, Window Heating is on
Operating Range
Observe Range Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m
Detect Range /
External Cable Connection
Cable Length 4m
Standard External Interface Power Supply: DC5.5*2.1 Female Connector
Video: RCA Lotus Male Connector
Serial Port: SM 2.54-3P Male Connector (Pin)
Physical Characteristics
Dimension (mm) 40.0x36.0x58.0 (Without Cable)
Weight 150g±3g (Without Cable)
Environmental Adaptation
Operation Temperature -40°C ~ +85°C
Storage Temperature -45°C ~ +90°C
Environmental Test Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013
Reliability Test Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV
Package Sealed Case IP67
Certification
EMC EMC Test Certification (ISO10605, ISO11452-4, ISO11452-2, ISO7637-2)



Industrial Applications



The N-driver 384 automotive thermal imaging camera is widely used in Advanced Driver Assistance System.



Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission 0



Our Team



Night Vision Vehicle Mounted Thermal Camera Core High Speed Data Transmission 1



FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2.What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3.What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
