RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler

I'm Online Chat Now

RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler

RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler
RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler

Large Image :  RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS046H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@100K@20℃)>400mW Stable Power Consumption: <3.5W (130mW@100K@20°C)
Working Temperature: -45℃~+85℃ Size: 45x34x67mm
Weight: <250g MTTF: >10000h
High Light:

400mW Integrated Dewar Cooler Assembly

,

250g Integrated Dewar Cooler Assembly

RS046H Cryo Cooler



RS046H 400mW Split Rotary Stirling Cryocooler for Cooled Infrared Detectors



Product Description

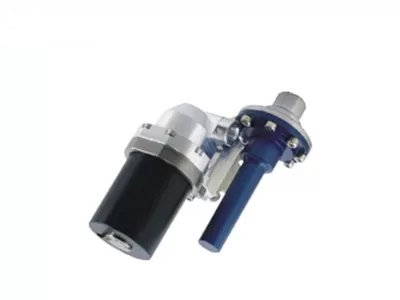

RS046H is a split version of RS046 rotary stirling cooler developed by Global Sensor Technology (GST). With the same compressor structure of RS046, the split format RS046H is even smaller in size. The cold finger in RS046H dewar cooler has the same diameter as that in RS046 cooler but with shorter length. Benefit from the split design of the compressor and the cold finger, the infrared system with RS046H integrated is flexible in special design.



Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.



Main Features



- MTTF>10000hrs

- Cooling Power: (@100K@20℃)>400mW

- Cooling Time: <5mins(110J@100K@20℃)

- Small Size

- Low Noise

- Low Consumption



Product Specifications



RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler 0


Industrial Applications



The RS046H integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Exhibitions



RS046H 400mW Integrated Dewar Cooler Assembly Split Rotary Stirling Cryocooler 1



FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2.What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3.What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
