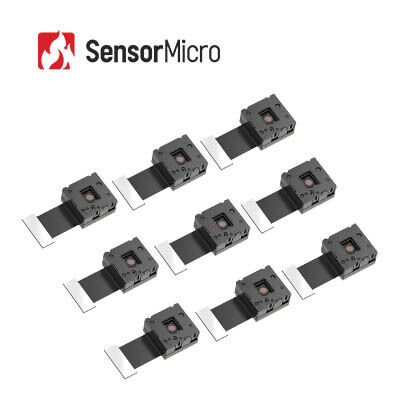

TIMO Tiny Size Uncooled LWIR Thermal Imaging Module with 120x90 Resolution for Temperature Measurement
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | TIMO112 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Frame Rate | 25Hz | Pixel Pitch | 12μm |
|---|---|---|---|
| Temperature Range | -20℃~550℃ | Resolution | 120x90 |
| Weight (g) | 1.8 | Lens(HFOV/FL) | 50°/ 1.6mm |
| Highlight | LC260 Fever Detection Camera Core,256x192 Fever Detection Camera Core,IP54 Fever Detection Camera Core |
||
Product Description
TIMO Tiny Size Uncooled LWIR Thermal Imaging Module 120x90/12μm
TIMO112 Uncooled 120x90/12 μm Thermal Camera Module for Temperature Measurement
Miniature size TIMO112 infrared module integrates the wafer level packaging 120x90 / 12μm uncooled infrared detector.
The TIMO112 infrared module has a temperature measurement range from -20℃~550℃ and accuracy of ±2℃ / ±2%.
As a leading infrared detector and thermal imaging module supplier, we have provided customers with various mature and stable infrared thermal imaging solutions. Our products are easily integrated into terminal products and significantly reduce customer costs.
Main Features
- Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
- The smallest infrared thermal module, enabling minimal thermal imaging functionality with maximum cost efficiency
- Compact size, lightweight, and low power consumption, ideal for integration into miniature devices
- Ultra-low power design, consuming as little as 9mW
- Smooth imaging with a frame rate of 25Hz
- Supports SPI image interface, compatible with various embedded platforms
- Compliant with RoHS 2.0 environmental standards
Ultra-Miniature Module with Ultimate SWaP-C Optimization
Proven Performance and Rapid Response
Flexible and Eco-friendly
Product Specifications
| Model | TIMO112 |
|---|---|
| Resolution | 120*90 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 50°/ 1.6mm |
| Weight | 1.8g |
| Size (without FPC) | 12.6mm*12.6mm*8.8mm |
| Number of PINs | 40PIN |
| Output Data | 14bit Raw |
| Frame Rate | 25Hz |
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃~+60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
Industrial Applications
The TIMO112 infrared camera module can be used in applications such as Smart Home, AIoT, Instrument and Meter, Intelligent Security, and Night Observation.
Customized Service
Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. How does uncooled focal plane array microbolometer work?
By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.
2. What's the advantage of uncooled vox microbolometer?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, and low cost. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
