Lightweight Integral Rotary Stirling Cryocooler 750mW for Cooled Infrared Detectors

I'm Online Chat Now

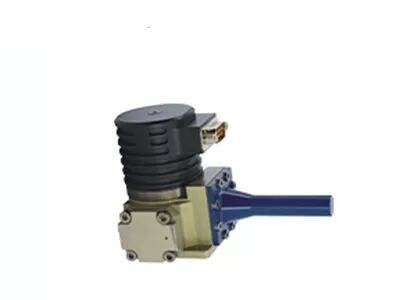

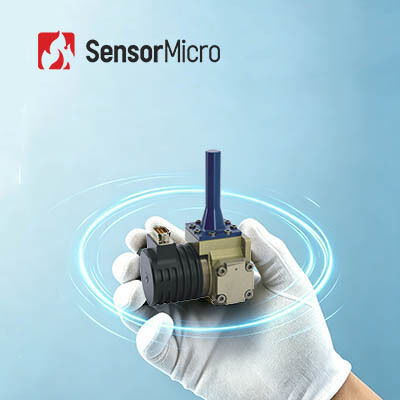

Lightweight Integral Rotary Stirling Cryocooler 750mW for Cooled Infrared Detectors

Lightweight Integral Rotary Stirling Cryocooler 750mW for Cooled Infrared Detectors
Lightweight Integral Rotary Stirling Cryocooler 750mW for Cooled Infrared Detectors

Large Image :  Lightweight Integral Rotary Stirling Cryocooler 750mW for Cooled Infrared Detectors

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS079
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@77K@20℃)>750mW Stable Power Consumption: <12W (550mW@77K@20℃)
Working Temperature: -45℃~+85℃ Size: 120x59x78mm
High Light:

Lightweight Stirling Cryocooler

,

Stirling Cryocooler 750mW

RS079 by GST Infrared



RS079 750mW Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors



Product Description



RS079 is one of the integral rotary stirling cryocooler series developed by Global Sensor Technology (GST). It provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of stirling cooled detectors.



Its motor windings are separated from the working gas to prevent contamination. High wear-resisting coating and clean room assembly are applied to prolong the lifetime and high reliability. For compactness, the electronic drive is built-in. An onboard temperature sensor offers stand-by, remote shutdown and over-temperature protection options. With high performance, RS079 dewar cooler assembly is designed to meet the demand for high cooling power of the large FPA formats.



Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.



Main Features



- MTTF>10000hrs

- Cooling Power: (@77K@20℃)>750mW

- Cooling Time: <5mins (500J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics



Product Specifications



Model RS079
Type Integral Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm) 120×59×78
Weight <600g
Cooling Power (@77K@20°C) >750mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 18-28VDC
Max Power Consumption <18W
Steady Power Consumption <12W (550mW@77K@20°C)
Cooling Time <5mins (500J@77K@20°C)
Cold Finger Dimension Φ9.4mm
Electronics Internal
Integration Method IDDCA



Industrial Applications



The RS079 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Our Advantages



Lightweight Integral Rotary Stirling Cryocooler 750mW for Cooled Infrared Detectors 0





FAQs



1.How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
